Name:

8 Channel AHD-H Full 1080P DVR Digital Video Recorder with 1080P Varifocal outdoor Dome camera

Manufacturer Name:

Professional 8 Channels Full 1080P H.264 Networking Digital Video Recorder DVR

- Record and playback resolution12fps Each Channel (1080P) 1920 X 1080 Pixels Resolution

- 4 Channel Playback simultaneously

- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.

- Support 4 channel Audio-Input

- Support Text email alert

- Support Remote View computer, i-Mac, i-phone, Andriod phone, i-pad

- Come with USB mouse and power supply

Specifications
Video Signal	NTSC / PAL
Video Compression format	H.264 Compression
GUI OSD	YES
Video Input	8 Channels BNC
Video Output	1 X HDMI, 1 X VGA
Audio Input/Output	4 Audio RCA Input , 1 Audio RCA Output
Display Frame rate	(1080P)1920X1080 Pixels 240FPS <NTSC>
Maximum Recording Rate	(1080P)1920X1080 Pixels 96FPS <NTSC>
Image Quality Setting	Best , Good, General
Hard Disk Storage	Support 2 X SATA Drive. Each can support up to 6TB
Multiplex Operation	Live : display/record/playback/backup Network : display/playback/backup
Record Mode	Regular: Keep recording Detect : motion detect Alarm : alarm input
Playback Mode	Multiple slow and rapid play speeds, manual and single-frame play modes. support positioning the time by driving the sliding bar
Backup	USB 2.0 flash drive 128GB or below Network download
Pre-alarm Recording	Recording 10 seconds before alarming
Network Protocol	TCP/IP , PPPoE , DDNS
Ethernet port	10/100 Base
Web Interface	CMS software OS: Window 10/11 i-Mac i-phone / Android phone / i-pad
Tour	YES (Sequential Channel Switch)
Video Adjust	Hue / Saturation / Contrast / Brightness
PTZ Control	None
Power Source	DC 12V (+/- 10%)
Dimensions (inches)	13(L) X 10(W) X 2(H) inches

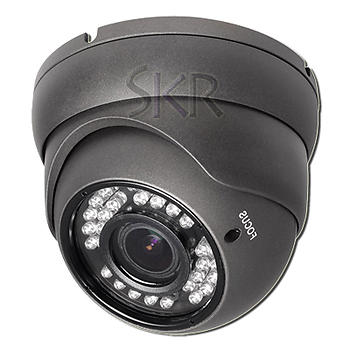

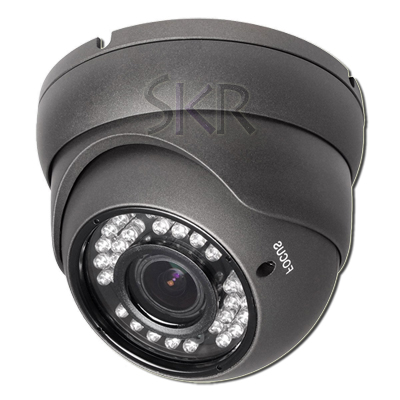

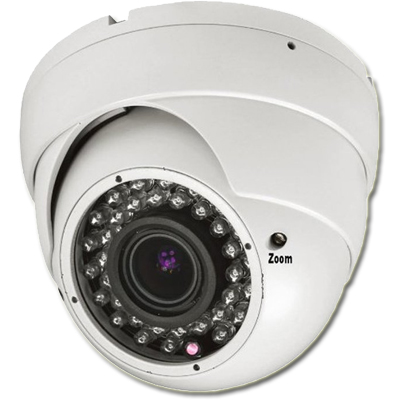

1080P 2 Megapixel Vari-focal 2.8-12mm IR night-vision Color Outdoor Dome Camera

Specification
CCD	1/3" Color Cmos
Resolution	1080P
Pixel	1920(H) X 1080(V)
Min. Illumination	0.1Lux / F1.2
LED	36 IR LED
IR Range	up to 60ft
Lens	2.8-12mm adjustable lens (focus 15 ft - 30 ft)
Angle	H= 67? 23'; V= 53? 8'
S/N Ration	More than 48dB (AGC off)
Electronic Shutter	1/60(1/50) to 1/100,000 sec.
Water Proof	Yes (IP66)
Gamma Correction	0.45
White Balance	ATW
AGC	Auto
Video Output	1.0 VP-p composite 75 Ω BNC
Power Source	DV 12V (+/-10%) 350mA
