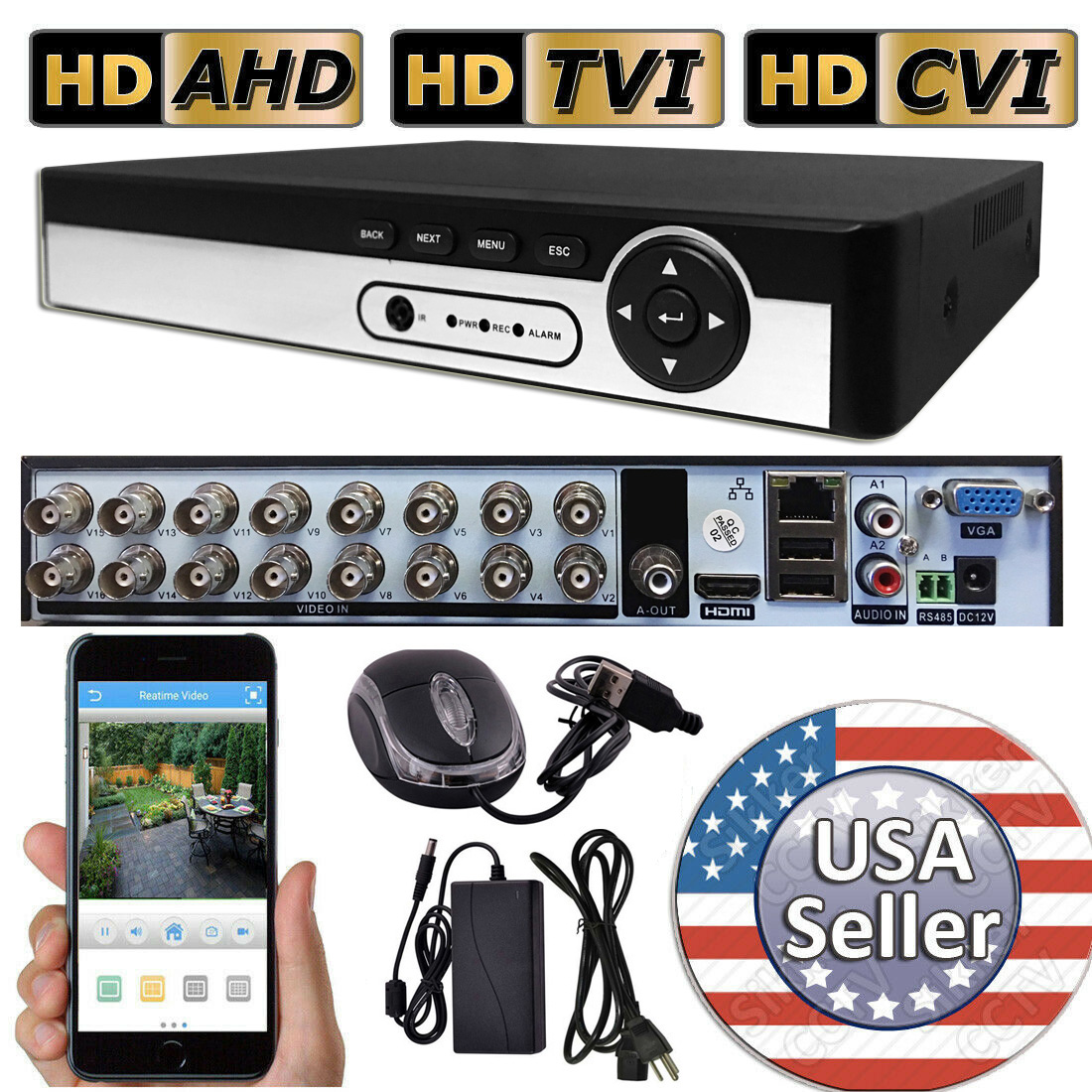

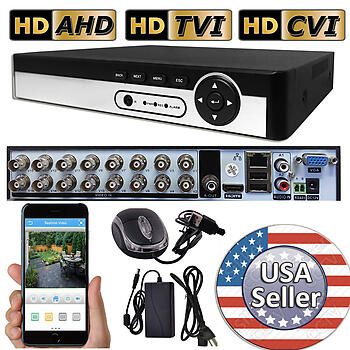

Professional 16 Channels 960H 720P 1080N 5MP-N 8MP-N H.265 Networking Digital Video Recorder DVR

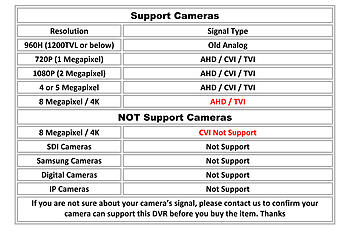

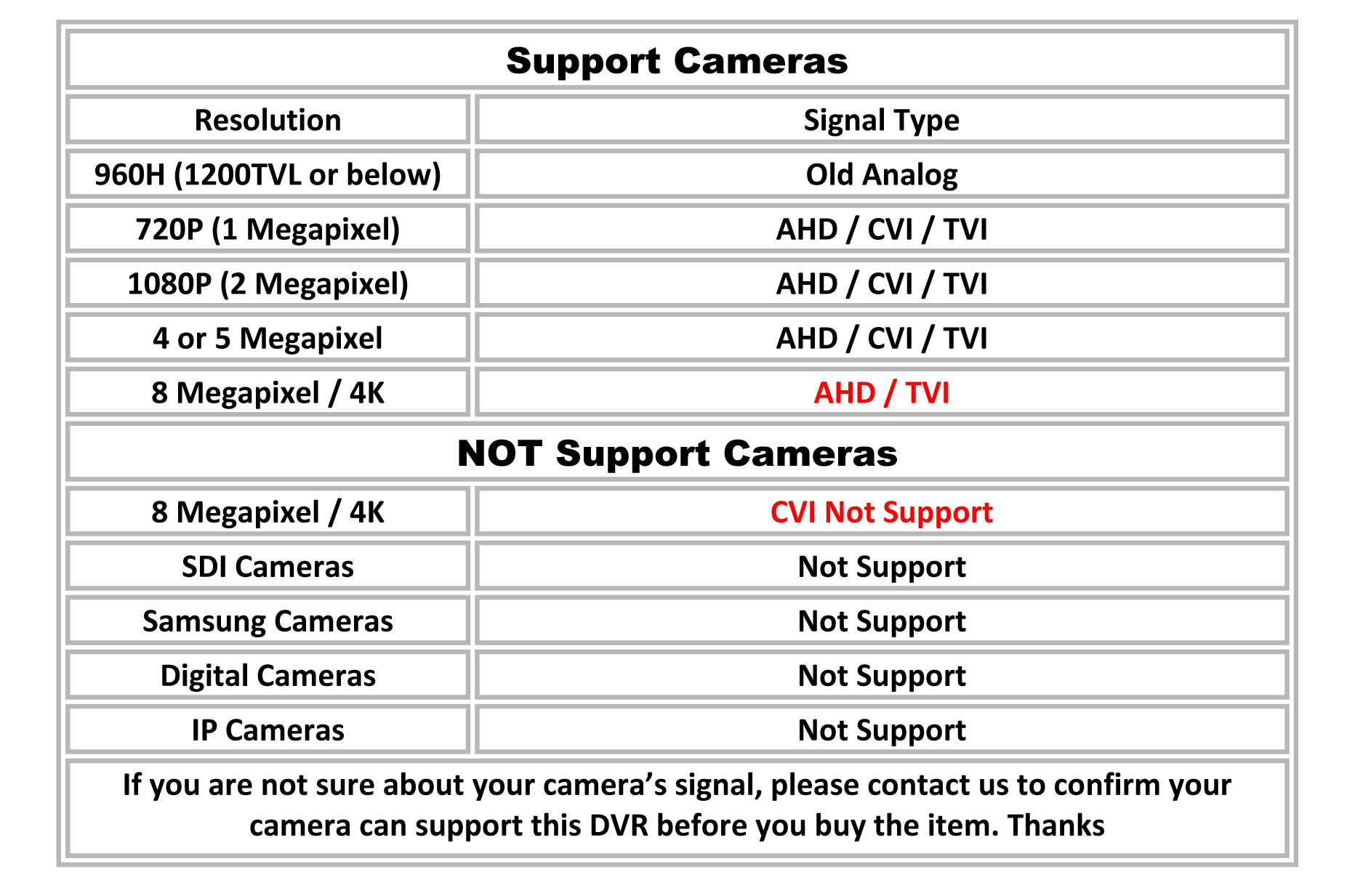

Connect old analog camera : Real-Time 30fps Each Channel (960H) 960X480 Pixels

Connect 720P camera : 30fps Each Channel (720P) 1280X720 Pixels

Connect 1080P camera : 15fps Each Channel (1080P) 1920X1080 Pixels

Connect 4MP/5MP camera : 8fps Each Channel (5MP) 2560X1920

Connect 4K 8MP camera : 8fps Each Channel (8MP-N) 1920 X 2160 Pixels

- Support Remote View via i-Phone, i-pad, Android phone, computer

- Come with USB mouse, Power supply

Specifications
Video Signal	NTSC / PAL
Video Compression format	H.265 Compression
GUI OSD	YES

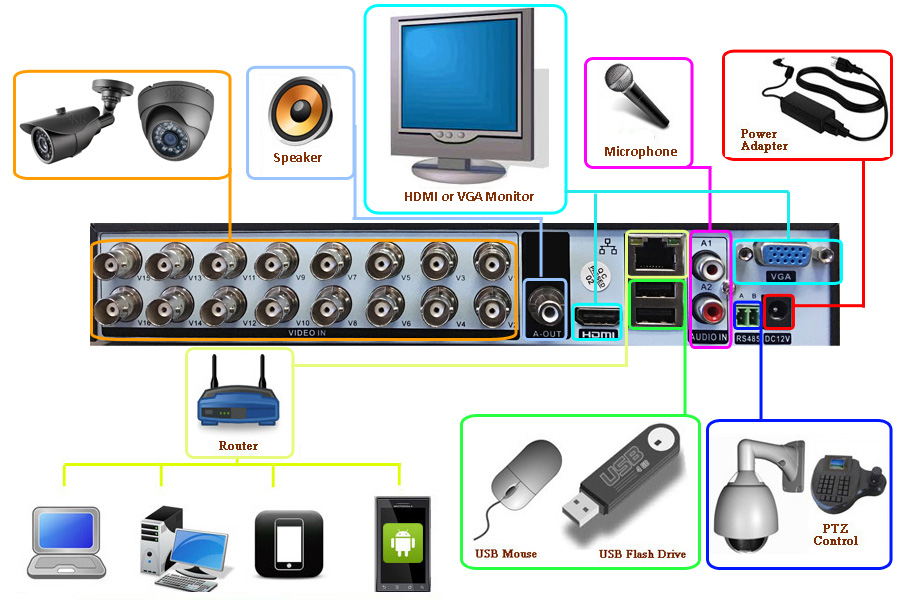

Video Input	16 Channels BNC
Video Output	1 X HDMI, 1 X VGA
Audio Input/Output	2 Audio RCA Input , 1 Audio RCA Output
Alarm Input/Output	NO
Display Resolution	4K / 2K/ 1080P / 720P / 960H
Maximum Recording Rate	(960H)960X480Pixels 30fps per channel <NTSC> (720P)1280X720Pixels 30fps per channel <NTSC> (1080P)1920X1080Pixels 15fps per channel<NTSC> (5MP) 2560 X 1920 Pixels 8fps per channel <NTSC> (8MP-N/4K-N) 1920 X 2160 8fps per channel
Image Quality Setting	Best , Good, General
Hard Disk Storage	Support 1 X SATA Drive. Each can support up to 8TB
Multiplex Operation	Live : display/record/playback/backup Network : display/playback/backup
Record Mode	Regular: Keep recording Detect : motion detect Alarm : alarm input
Playback Mode	Multiple slow and rapid play speeds, manual and single-frame play modes. support positioning the time by driving the sliding bar
Backup	USB 2.0 flash drive 128GB or below Network download
Pre-alarm Recording	No
Network Protocol	TCP/IP , PPPoE , DDNS
Ethernet port	10/100 Base
Web Interface	CMS software , OS: Window 7 / 8 / 10 / 11 i-Mac i-phone / i-pad / Android phone
Tour	YES (Sequential Channel Switch)
Video Adjust	Hue / Saturation / Contrast / Brightness
PTZ Control	Yes : RS485
Power Source	DC 12V (+/- 10%)
Dimensions (inches)	15(L) X 11.5(W) X 2.5(H) inches
