Name:

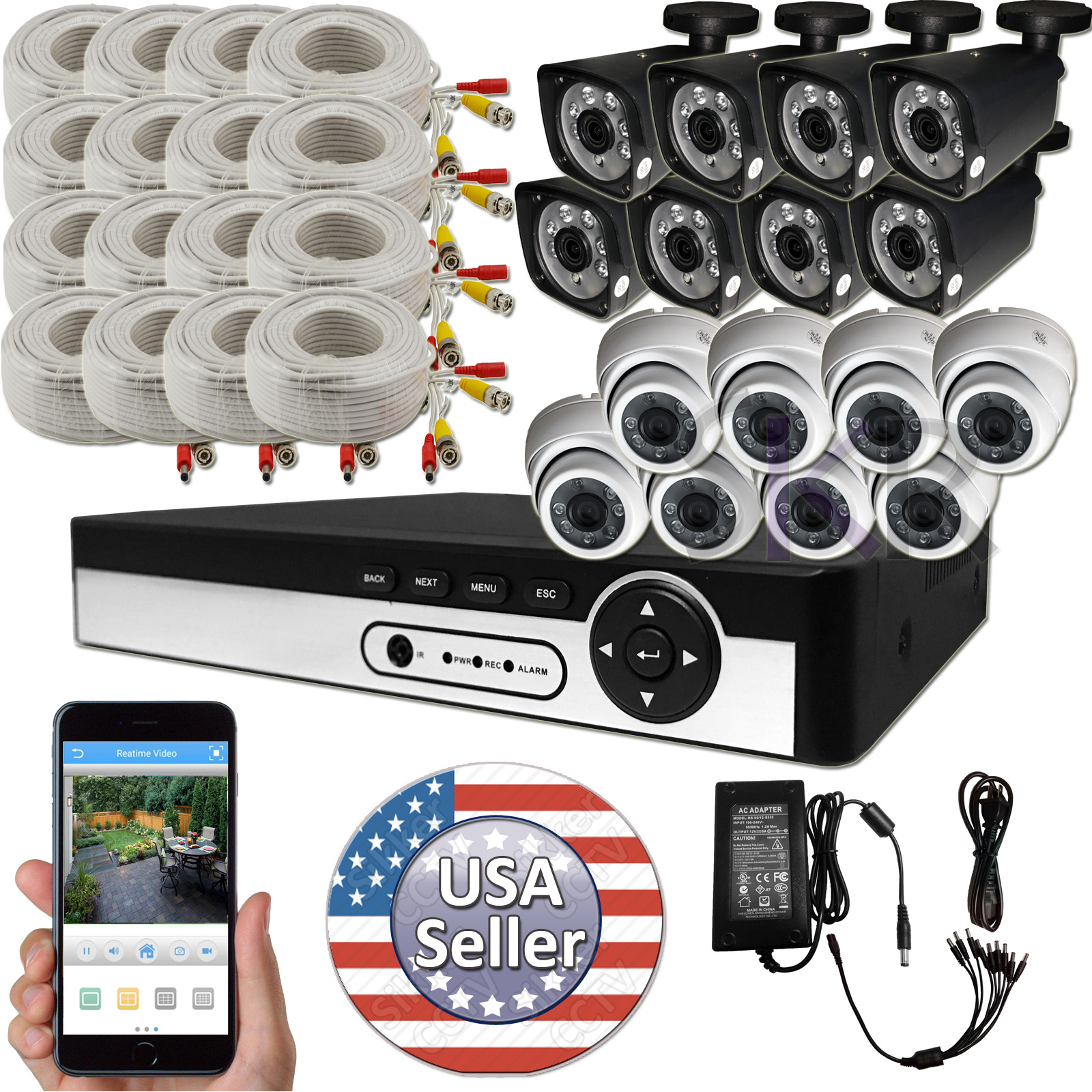

Sikker 16 Channel AHD DVR Digital Video Recorder with 16 Color 1080P 2 Megapixel outdoor camera
Manufacturer Number:
SKR-D316S8DB
Professional 16 Channels AHD-NH 1080N H.265 Networking Digital Video Recorder DVR
- Record resolution 13fps Each Channel (1080N) 960 X 1080 Pixels Resolution
- 16 Channel Playback simultaneously
- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS
- Support 2 channel Audio-Input
- Support text email alert
- Support Remote View via Internet Explorer 7 or above, i-Phone, Android
- Come with USB mouse, Remote Control, User Manual, CD with complete user manual& Software
| Specifications |
| Video Signal |
NTSC / PAL |
| Video Compression format |
H.265 Compression |
| GUI OSD |
YES |
| Video Input |
16 Channels BNC |
| Video Output |
1 X HDMI, 1 X VGA |
| Audio Input/Output |
2 Audio RCA Input , 1 Audio RCA Output |
| Display Frame rate |
(1080N)960X1080 Pixels 480FPS <NTSC> |
| Maximum Recording Rate |
(1080N)960X1080 Pixels 208FPS <NTSC> |
| Image Quality Setting |
Best , Good, General |
| Hard Disk Storage |
Support 1 X SATA Drive. Each can support up to 6TB |
| Multiplex Operation |
Live : display/record/playback/backup
Network : display/playback/backup |
| Record Mode |
Regular: Keep recording
Detect : motion detect
Alarm : alarm input |
| Playback Mode |
Multiple slow and rapid play speeds, manual and
single-frame play modes.
support positioning the time by driving the sliding bar |
| Backup |
USB 2.0 flash drive 128GB or below
Network download |
| Pre-alarm Recording |
No |
| Network Protocol |
TCP/IP , PPPoE , DDNS |
| Ethernet port |
10/100 Base |
| Web Interface |
CMS software OS: Window 7 / 8 / 10 / 11
i-phone / Android phone / i-pad |
| Tour |
YES (Sequential Channel Switch) |
| Video Adjust |
Hue / Saturation / Contrast / Brightness |
| PTZ Control |
RS485 |
| Power Source |
DC 12V (+/- 10%) |
| Dimensions (inches) |
15(L) X 11.5(W) X 2.5(H) inches |

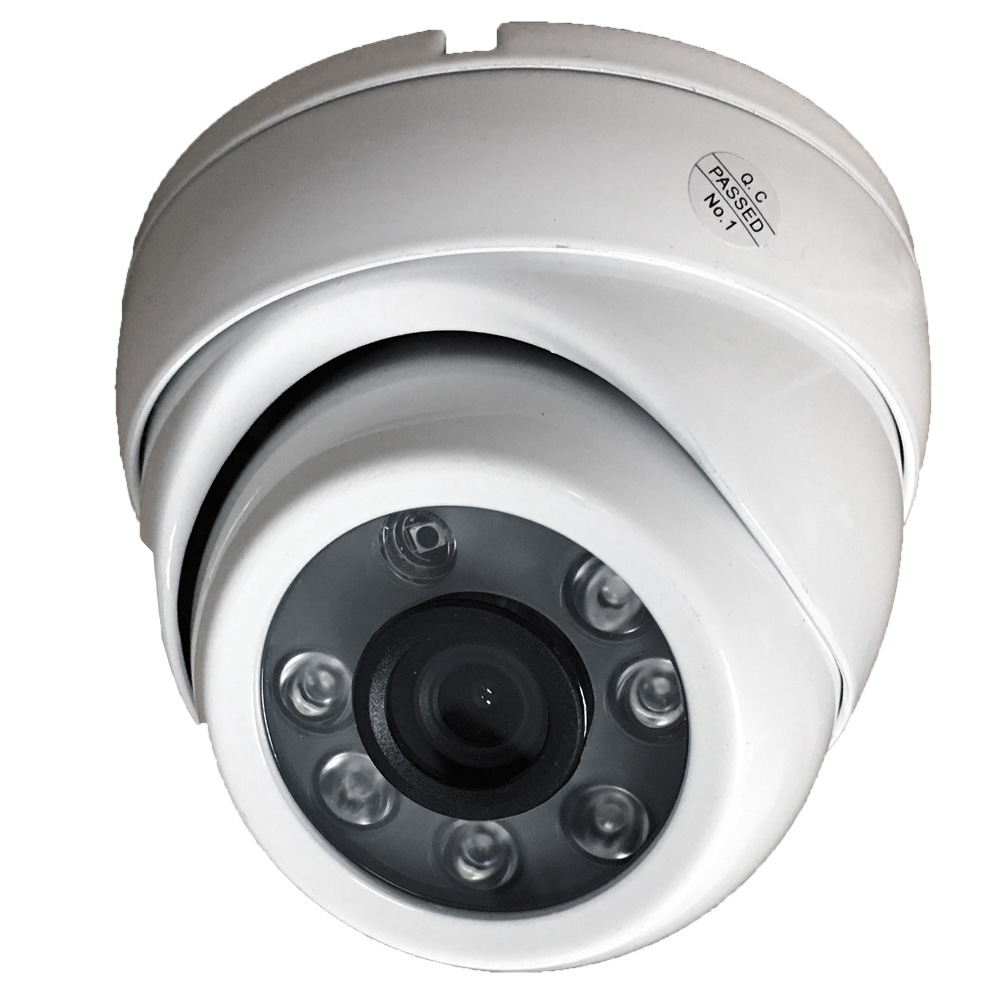

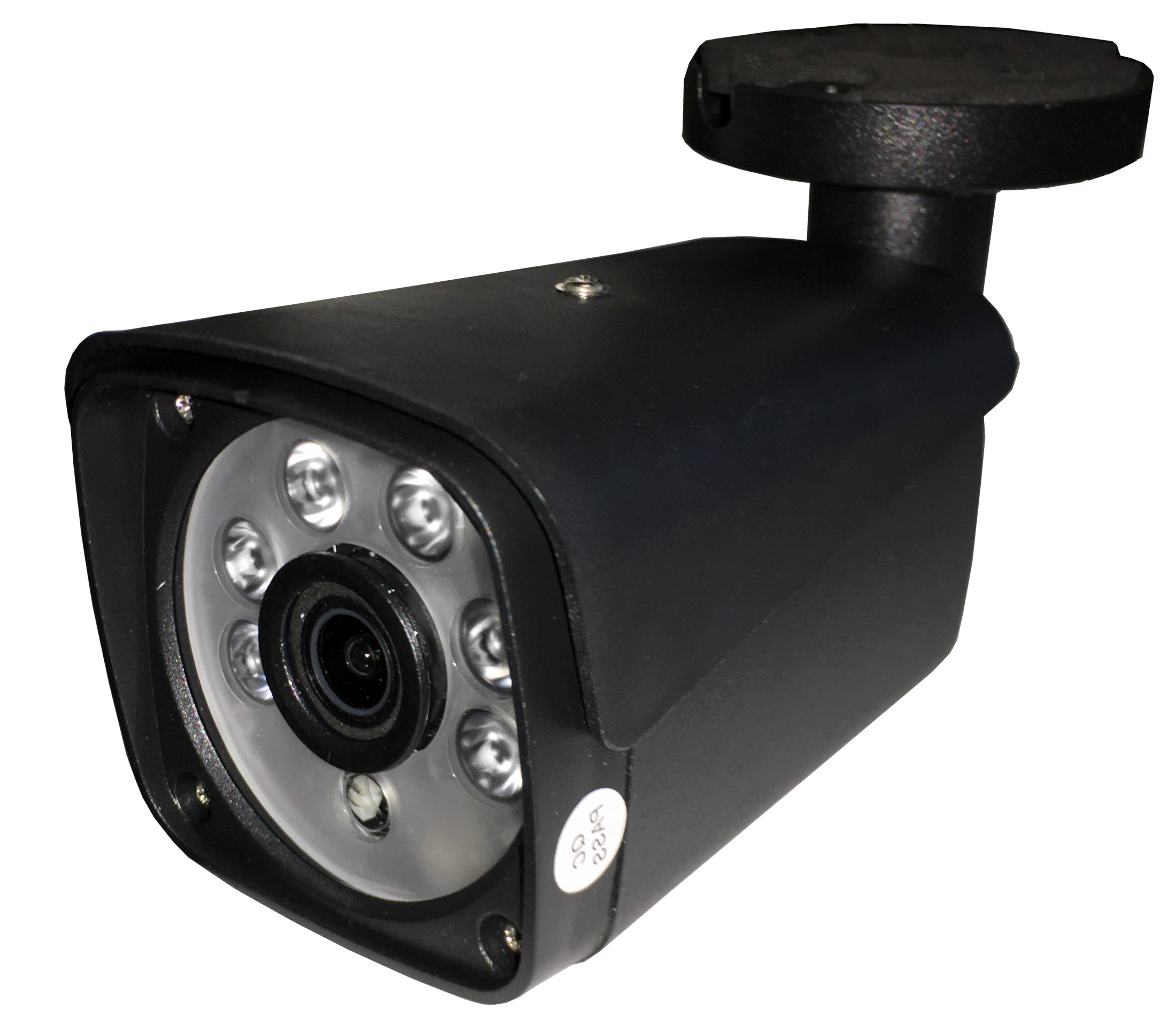

1080P 2 Megapixel IR night-vision Color Outdoor Camera
| Specification |
| CCD |
1/3" ColorCmos |
| Resolution |
1080P |
| Pixel |
1920(H) X 1080(V) |
| Min. Illumination |
0.1Lux / F1.2 |
| LED |
24 IR LED |
| IR Range |
up to 60ft |
| Lens |
3.6mm fixed lens (focus 30ft) |
| Angle |
H= 67? 23'; V= 53? 8' |
| S/N Ration |
More than 48dB (AGC off) |
| Electronic Shutter |
1/60(1/50) to 1/100,000 sec. |
| Water Proof |
Yes (IP66)
|
| Gamma Correction |
0.45 |
| White Balance |
ATW |
| AGC |
Auto |
| Video Output |
1.0 VP-p composite 75 Ω BNC |
| Power Source |
DV 12V (+/-10%) 350mA |
*** Hard Drive is not included. Hard Drive is used for recording and playback. Please select correct one in the option.
|
|
|
