Name:

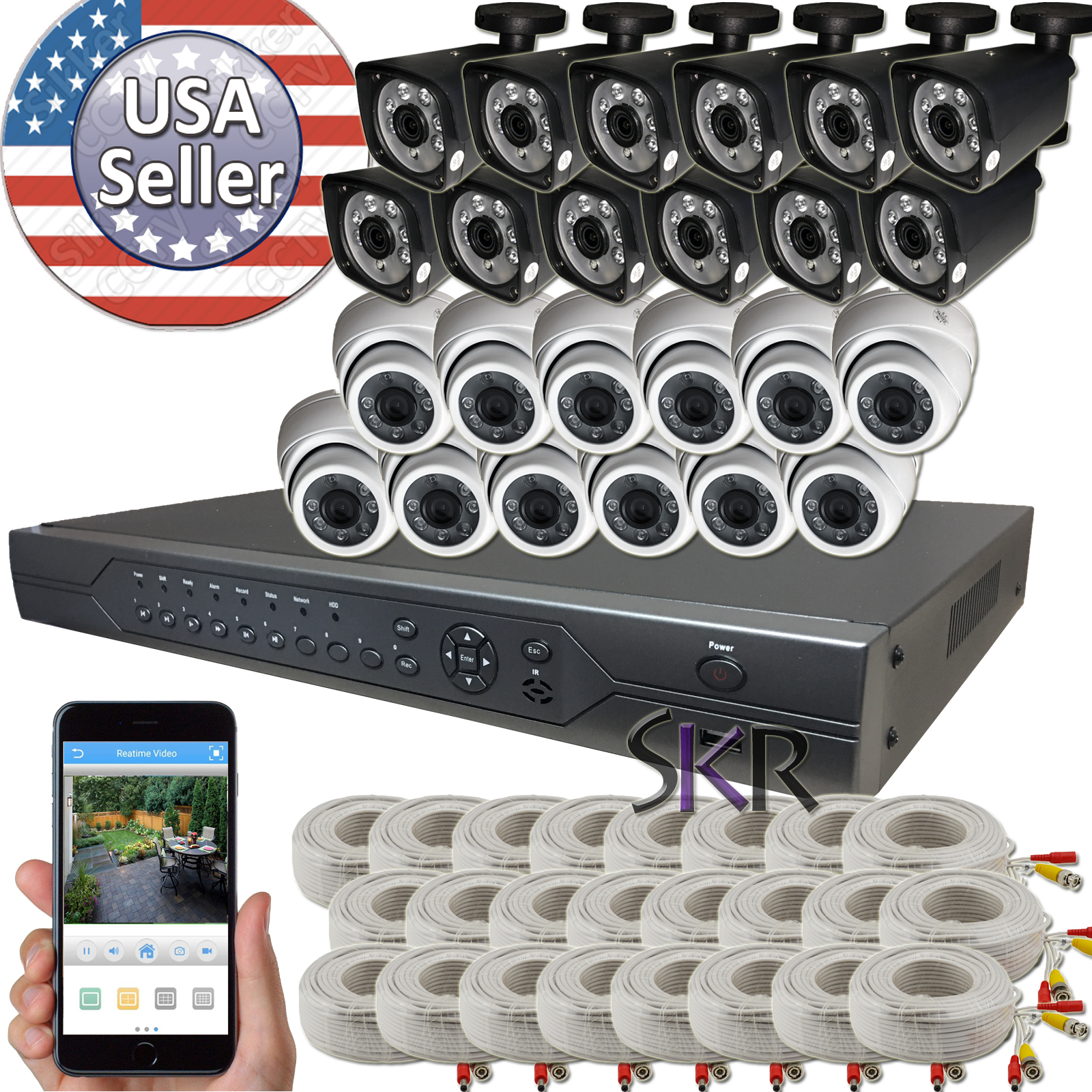

Sikker Standalone 32 Channel DVR 24pcs 1080P 2 Megapixel Camera Security system
Manufacturer Number:
SKR-H232H24B
Professional 32 Channels H.265 Networking Digital Video Recorder DVR
- Record resolution :
Connect 1080P cam : 1080N (960 X 1080 pixel) : 12fps Each Channel
Connect 720P cam : 720P (1280 X 720 pixel) : 12fps Each Channel
Connect old analog cam : 960H (960 X 480 Pixel) : 30fps Each Channel
- 16 Channel Playback simultaneously
- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS
- Support 16 channel Audio-Input
- Support text email alert
- Support Remote View via i-Phone, i-pad, Android, Computer
- Come with USB mouse, Power supply, CD with complete user manual & Software
To choose the correct hard drive.
Example :
Record 24 channel in 1080P resolution : 2TB hard drive can save 7 days before overwrite
| Specifications |
| Video Signal |
NTSC / PAL |
| Video Compression format |
H.265 Compression |
| GUI OSD |
YES |
| Video Input |
32 Channels BNC |
| Video Output |
1 X HDMI, 1 X VGA |
| Audio Input/Output |
16 Audio RCA Input, Audio output thru HDMI |
Display Resolution
|
1080P / 720P / 960H
|
| Maximum Recording Rate |
(960H)960X480Pixels 30fps per channel <NTSC>
(720P)1280X720Pixels 12fps per channel <NTSC>
(1080N)960X1080Pixels 12fps per channel<NTSC> |
| Image Quality Setting |
Best , Good, General |
| Hard Disk Storage |
Support 2 X SATA Drive. Each can support up to 12TB |
| Multiplex Operation |
Live : display/record/playback/backup
Network : display/playback/backup |
| Record Mode |
Regular: Keep recording
Detect : motion detect
Alarm : alarm input |
| Playback Mode |
Multiple slow and rapid play speeds, manual and
single-frame play modes.
support positioning the time by driving the sliding bar |
| Backup |
USB 2.0 flash drive 128GB or below
Network download |
| Pre-alarm Recording |
No |
| Network Protocol |
TCP/IP , PPPoE , DDNS |
| Ethernet port |
10/100 Base |
| Web Interface |
i-phone / i-pad / Android phone/ |
| Tour |
YES (Sequential Channel Switch) |
| Video Adjust |
Hue / Saturation / Contrast / Brightness |
| PTZ Control |
None |
| Power Source |
DC 12V (+/- 10%) |
| Dimensions (inches) |
15(L) X 11.5(W) X 2.5(H) inches |

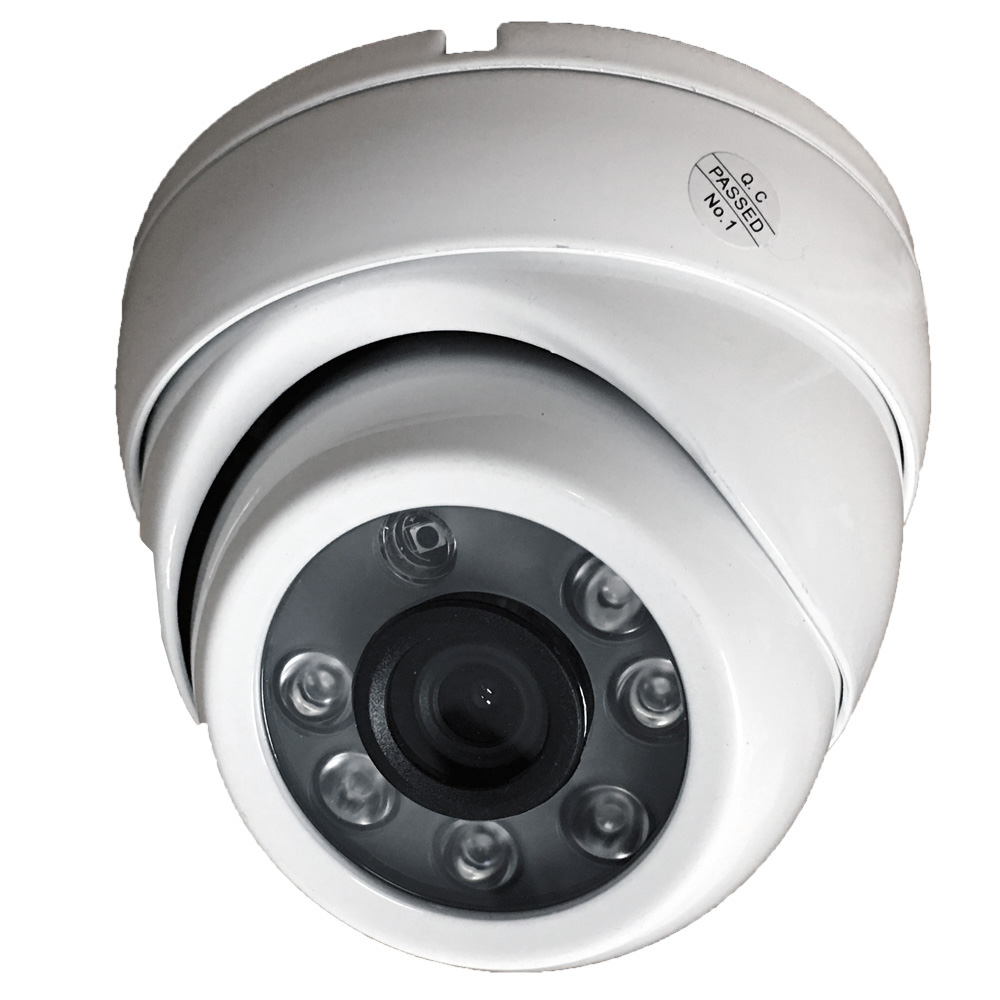

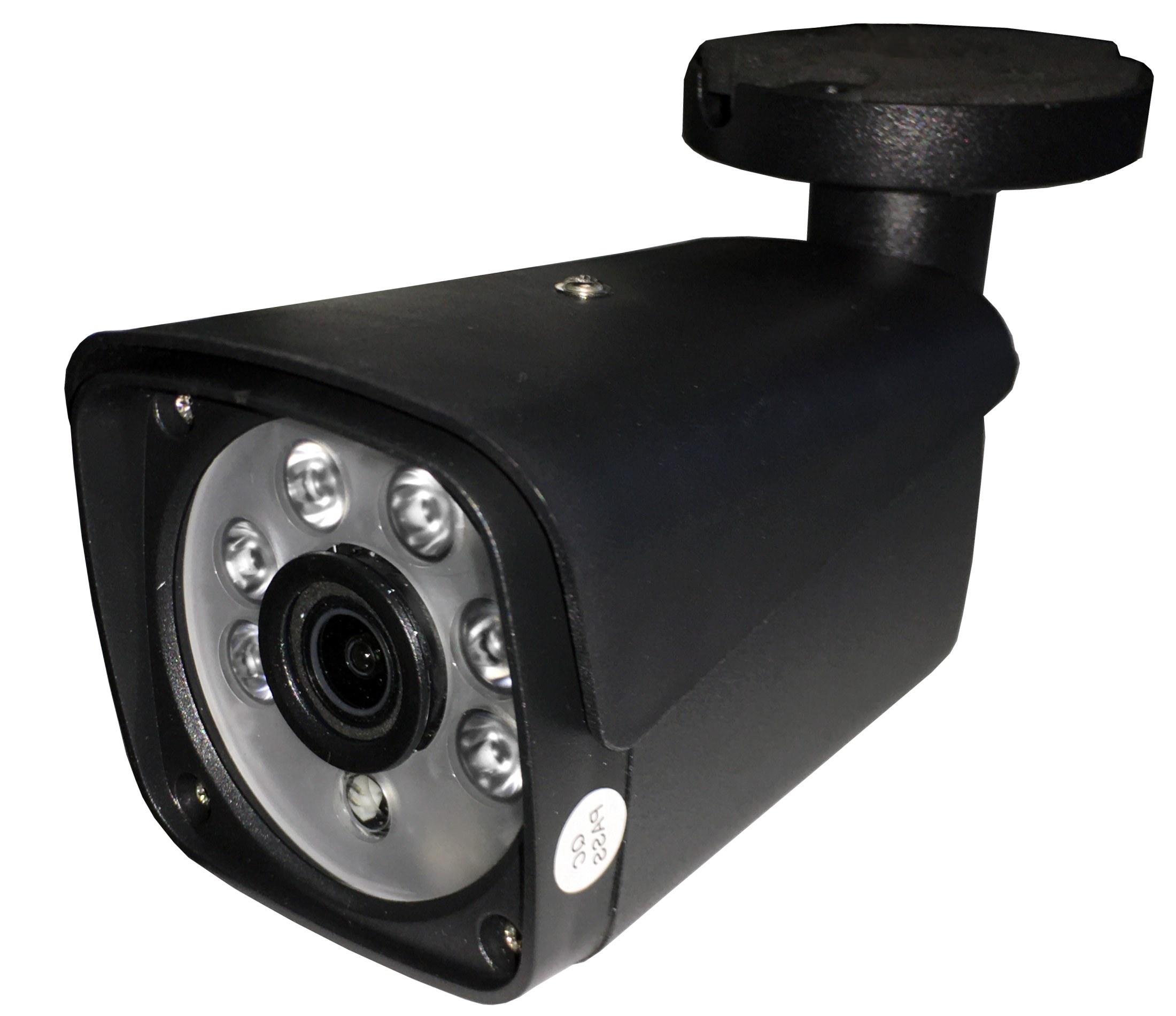

1080P 2 Megapixel 24 IR night-vision Indoor/Outdoor Color Camera
| Specification |
| Sensor |
Color Cmos |
| Resolution |
1080P |
| Pixel |
1920(H) X 1080(V) 2 Megapixel |
| Min. Illumination |
0.1Lux / F1.2 |
| LED |
24 IR LED |
| IR Range |
up to 60ft |
| Lens |
3.6mm fixed lens (focus 30ft) |
| Angle |
H= 67? 23'; V= 53? 8' |
| S/N Ration |
More than 48dB (AGC off) |
| Electronic Shutter |
1/60(1/50) to 1/100,000 sec. |
| Water Proof |
Yes (IP66)
|
| Gamma Correction |
0.45 |
| White Balance |
ATW |
| AGC |
Auto |
| Video Output |
1.0 VP-p composite 75 Ω BNC |
| Power Source |
DV 12V (+/-10%) 350mA |
** Hard Drive is not included. Hard Drive is used for recording and playback. Please select correct one in the option.
|
|
|
