Name:

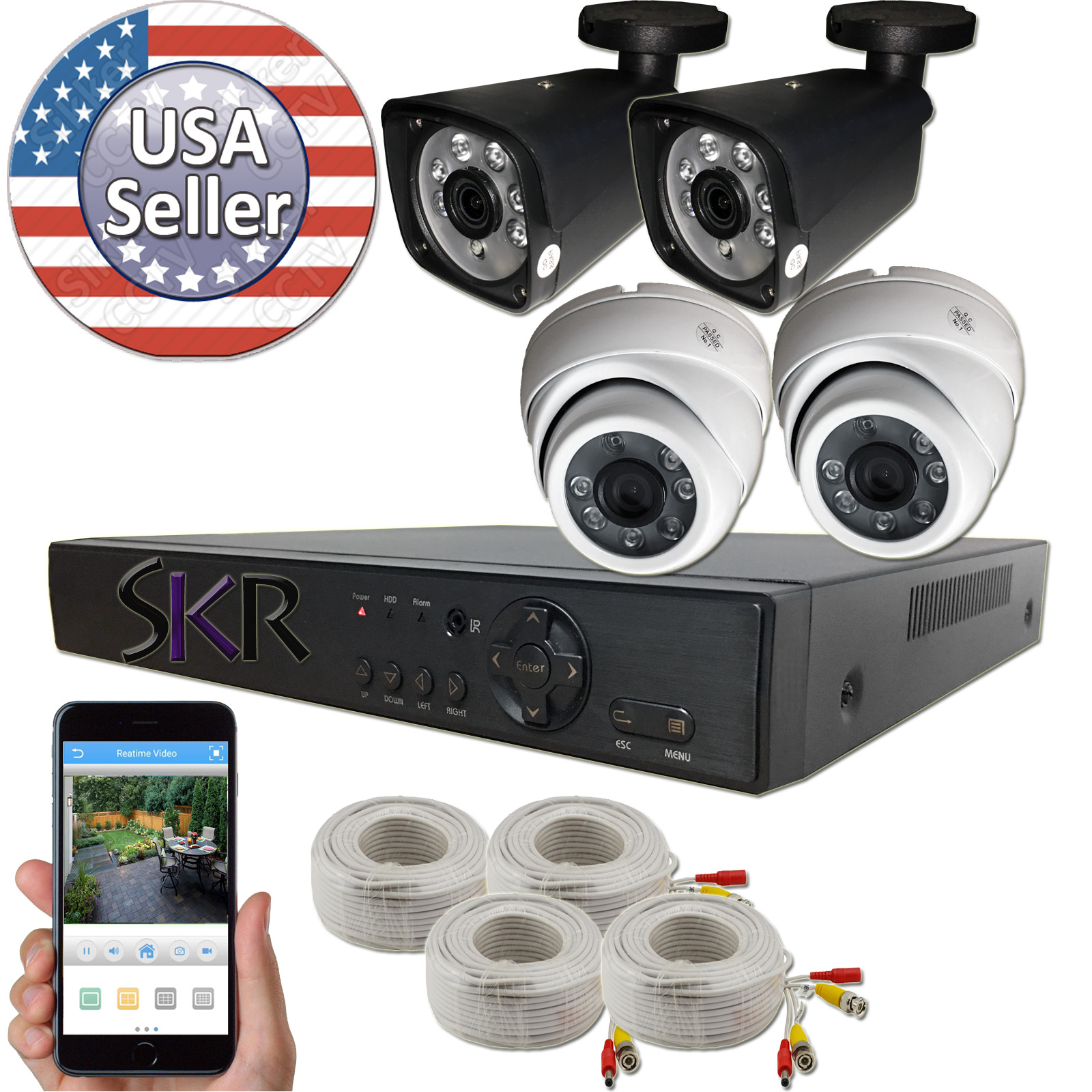

4 Channel DVR Digital Video Recorder with 4 units 1080P 2 Mepapixel outdoor camera

Manufacturer Number:

SKR-H28H2DB

4 Channels H.264 Networking Digital Video Recorder DVR

- Record resolution12fps Each Channel (1080N) 960 X 1080 Pixels Resolution

- Support Old analog or 720P or 1080P (HD-AHD/ HD-CVI /HD-TVI) together. Good for upgrade

- 4 Channel Playback simultaneously

- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.

- Support 4 channel Audio-Input

- Support Text email alert

- Support Remote View via Internet Explorer 7 or above, i-Phone, Android

- Come with USB mouse, Remote Control, User Manual, CD with complete user manual & Software

Specifications
Video Signal	NTSC / PAL
Video Compression format	H.264 Compression
GUI OSD	YES
Video Input	4 Channels BNC
Video Output	1 X HDMI, 1 X VGA
Audio Input/Output	4 Audio RCA Input , 1 Audio RCA Output
Display Frame rate	(1080N)960X1080 Pixels 240FPS <NTSC>
Maximum Recording Rate	(1080N)960X1080 Pixels 96FPS <NTSC>
Image Quality Setting	Best , Good, General
Hard Disk Storage	Support 1 X SATA Drive. Each can support up to 4TB
Multiplex Operation	Live : display/record/playback/backup Network : display/playback/backup
Record Mode	Regular: Keep recording Detect : motion detect Alarm : alarm input
Playback Mode	Multiple slow and rapid play speeds, manual and single-frame play modes. support positioning the time by driving the sliding bar
Backup	USB 2.0 flash drive 32GB or below Network download
Pre-alarm Recording	Recording 10 seconds before alarming
Network Protocol	TCP/IP , PPPoE , DDNS
Ethernet port	10/100 Base
Web Interface	OS: Window 2000/XP/Vista/ 7 /10 i-phone / Android / i-pad
Tour	YES (Sequential Channel Switch)
Video Adjust	Hue / Saturation / Contrast / Brightness
PTZ Control	RS485
Power Source	DC 12V (+/- 10%)
Dimensions (inches)	13(L) X 10(W) X 2(H) inches

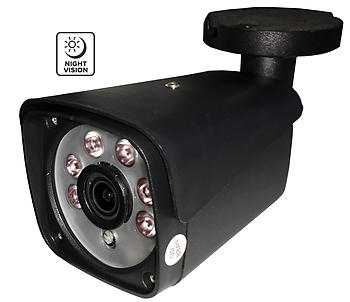

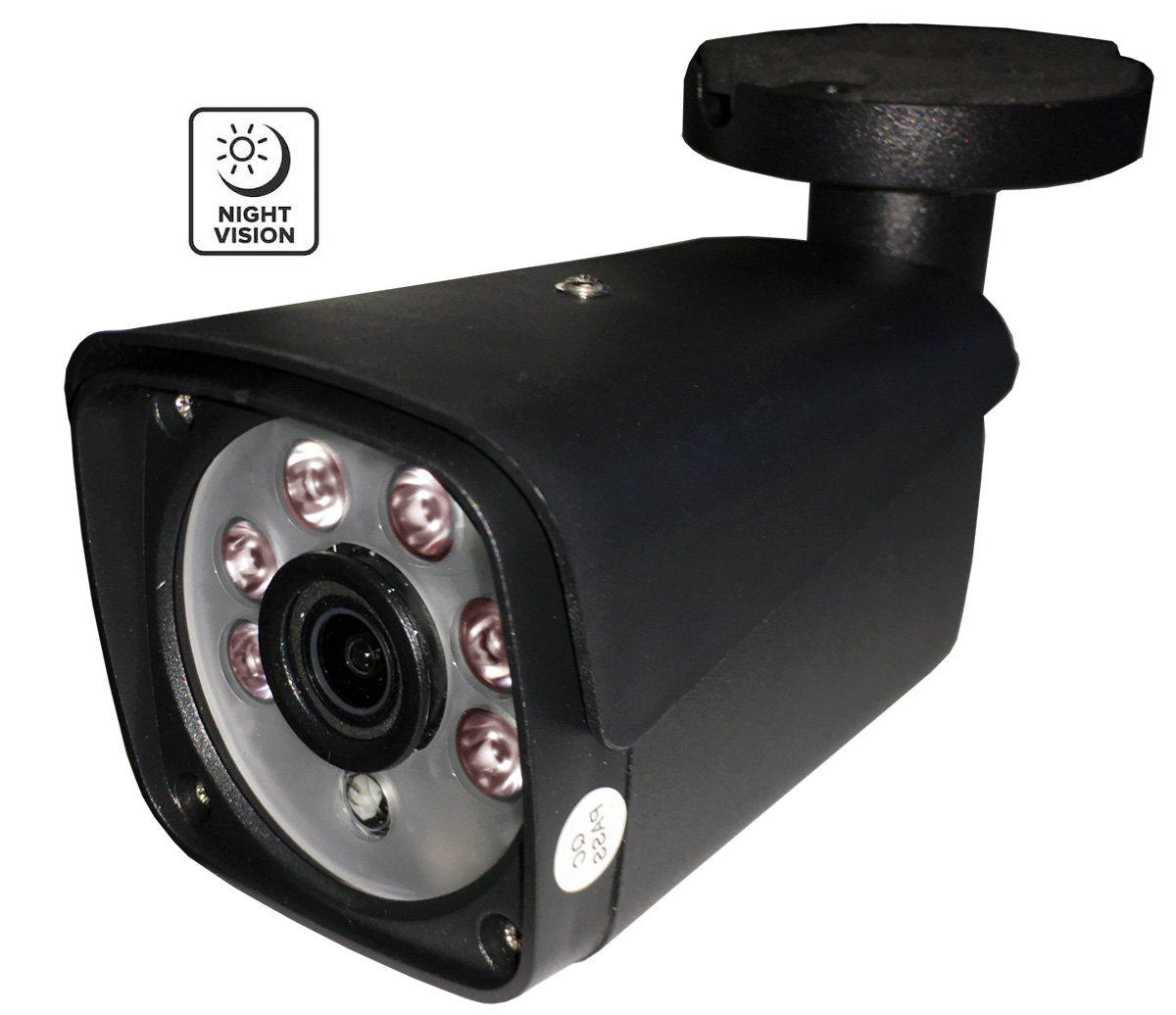

1080P 2 Megapixel IR night-vision Color Outdoor Camera
