Elite 16 Channels 5 megapixel H.265 Networking Digital Video Recorder DVR

- Record resolution : (5M-NP) 1280 X 1440 Pixels Resolution : 8fps per channel

- 8 Channel Playback simultaneously

- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.

- Support 2 channel Audio-Input

- Support Text email alert

- Support Remote View via i-Phone, i-pad, Android phone, computer

- Come with USB mouse, Power supply, User Manual

Specifications
Video Signal	NTSC / PAL
Video Compression format	H.265 Compression
GUI OSD	YES
Video Input	16 Channels BNC
Video Output	1 X HDMI, 1 X VGA
Audio Input/Output	2 Audio RCA Input , 1 Audio RCA Output
Display Resolution	(5MP-N) 1280X1440 Pixel (1080P / 2MP) 1920 X 1080 pixel (720P / 1MP) 1280 x 720 pixel
Maximum Recording Rate	(5MP-N) 1280 X 1440 Pixels 8fps per channel <NTSC>
Image Quality Setting	Best , Good, General
Hard Disk Storage	Support 1 X SATA Drive. Each can support up to 4TB
Multiplex Operation	Live : display/record/playback/backup Network : display/playback/backup
Record Mode	Regular: Keep recording Detect : motion detect Alarm : alarm input
Playback Mode	Multiple slow and rapid play speeds, manual and single-frame play modes. support positioning the time by driving the sliding bar
Backup	USB 2.0 flash drive 128GB or below Network download
Pre-alarm Recording	Recording 10 seconds before alarming
Network Protocol	TCP/IP , PPPoE , DDNS
Ethernet port	10/100 Base
Web Interface	CMS software OS: Window 10 / 11 i-phone / i-pad / Android phone
Tour	YES (Sequential Channel Switch)
Video Adjust	Hue / Saturation / Contrast / Brightness
PTZ Control	RS485
Power Source	DC 12V (+/- 10%)
Dimensions (inches)	10(L) X 9(W) X 2(H) inches

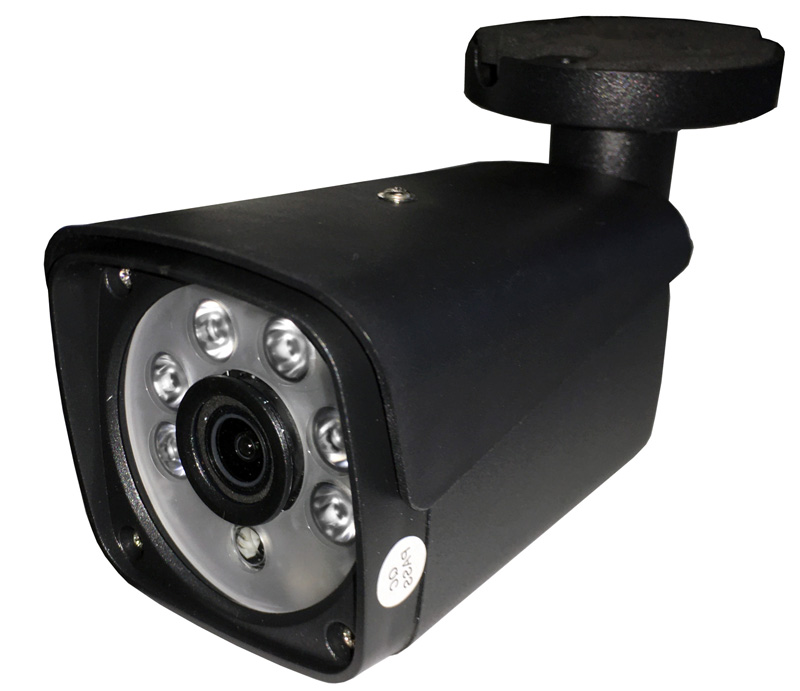

1440P 4 Megapixel IR night-vision Color Indoor/Outdoor Camera
