Name:

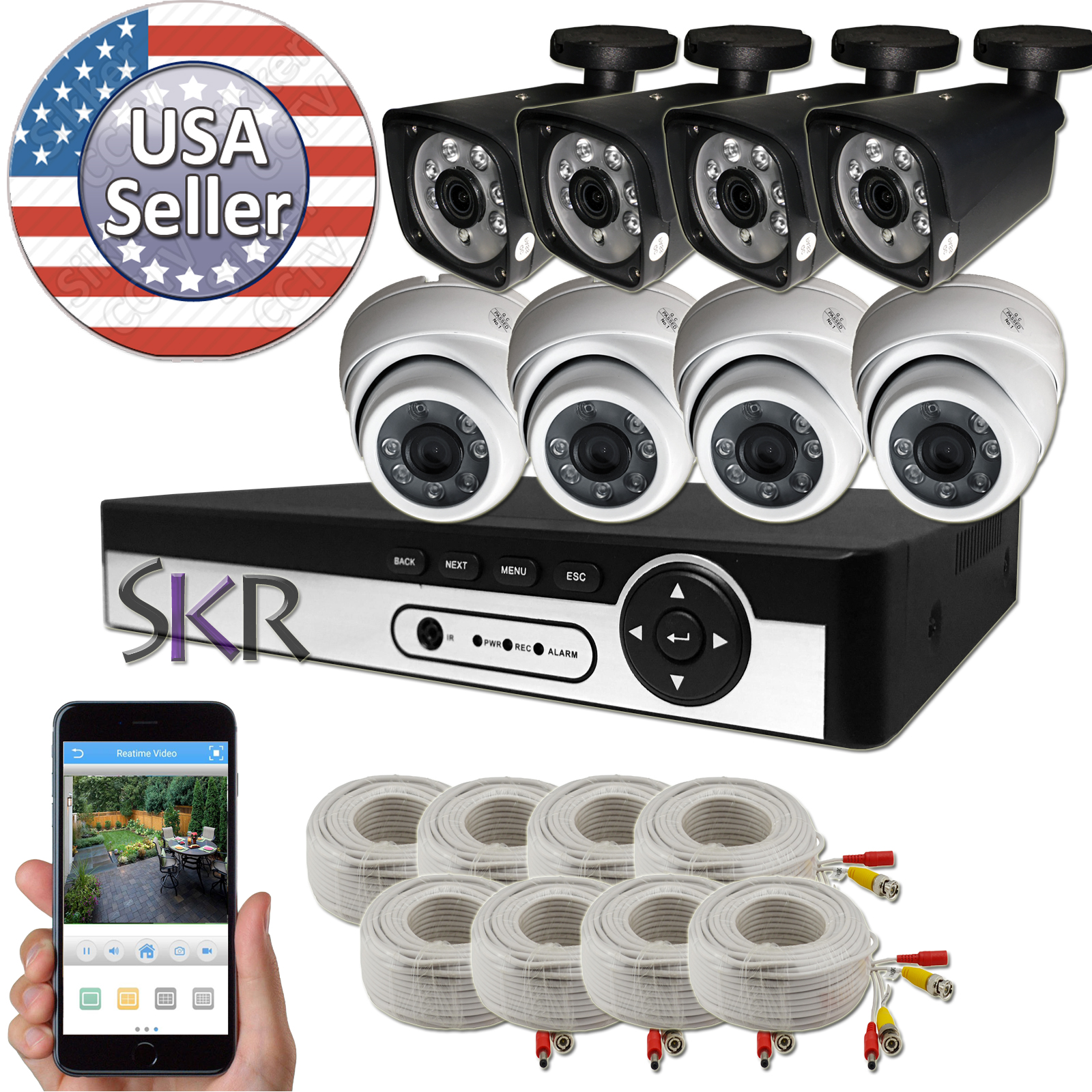

Elite 16 Channel 5MP DVR Recorder with 8 pcs 5 Megapixel 1440P camera package
Manufacturer Number:
SKR-D316C4M4DB
Elite 16 Channels H.265 Networking Digital Video Recorder DVR
- Record resolution :
Connect 5 Megapixel camera : (5MP-N) 1280 X 1440 Pixels Resolution : 8fps per channel
Connect 1080P camera 2MP : (1080P) 1920 X 1080 Pixels Resolution : 15fps per channel
Connect 720P camera 1MP : (720P) 1280 X 720 Pixels Resolution : 30fps per channel
- 8 Channel Playback simultaneously
- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.
- Support 2 channel Audio-Input
- Support Text email alert
- Support Remote View via i-Phone, i-pad, Android phone, computer
- Come with USB mouse, Power supply, User Manual, CD with complete user manual & Software
| Specifications |
| Video Signal |
NTSC / PAL |
| Video Compression format |
H.265 Compression |
| GUI OSD |
YES |
| Video Input |
16 Channels BNC |
| Video Output |
1 X HDMI, 1 X VGA |
| Audio Input/Output |
2 Audio RCA Input , 1 Audio RCA Output |
| Display Resolution |
(5MP / 2K) 2560 X1440 Pixel
(1080P / 2MP) 1920 X 1080 pixel
(720P / 1MP) 1280 x 720 pixel
|
| Maximum Recording Rate |
(5MP-N) 1280 X 1440 Pixels 8fps per channel <NTSC>
(1080P) 1920 X 1080 Pixels 15fps per channel <NTSC>
(720P) 1280 X 720 Pixels 30fps per channel <NTSC> |
| Image Quality Setting |
Best , Good, General |
| Hard Disk Storage |
Support 1 X SATA Drive. Each can support up to 6TB |
| Multiplex Operation |
Live : display/record/playback/backup
Network : display/playback/backup |
| Record Mode |
Regular: Keep recording
Detect : motion detect
Alarm : alarm input |
| Playback Mode |
Multiple slow and rapid play speeds, manual and
single-frame play modes.
support positioning the time by driving the sliding bar |
| Backup |
USB 2.0 flash drive 128GB or below
Network download |
| Pre-alarm Recording |
No |
| Network Protocol |
TCP/IP , PPPoE , DDNS |
| Ethernet port |
10/100 Base |
| Web Interface |
CMS software OS: Window 10 / 11
i-phone / i-pad / Android phone
|
| Tour |
YES (Sequential Channel Switch) |
| Video Adjust |
Hue / Saturation / Contrast / Brightness |
| PTZ Control |
RS485
|
| Power Source |
DC 12V (+/- 10%) |
| Dimensions (inches) |
10(L) X 9(W) X 2(H) inches |

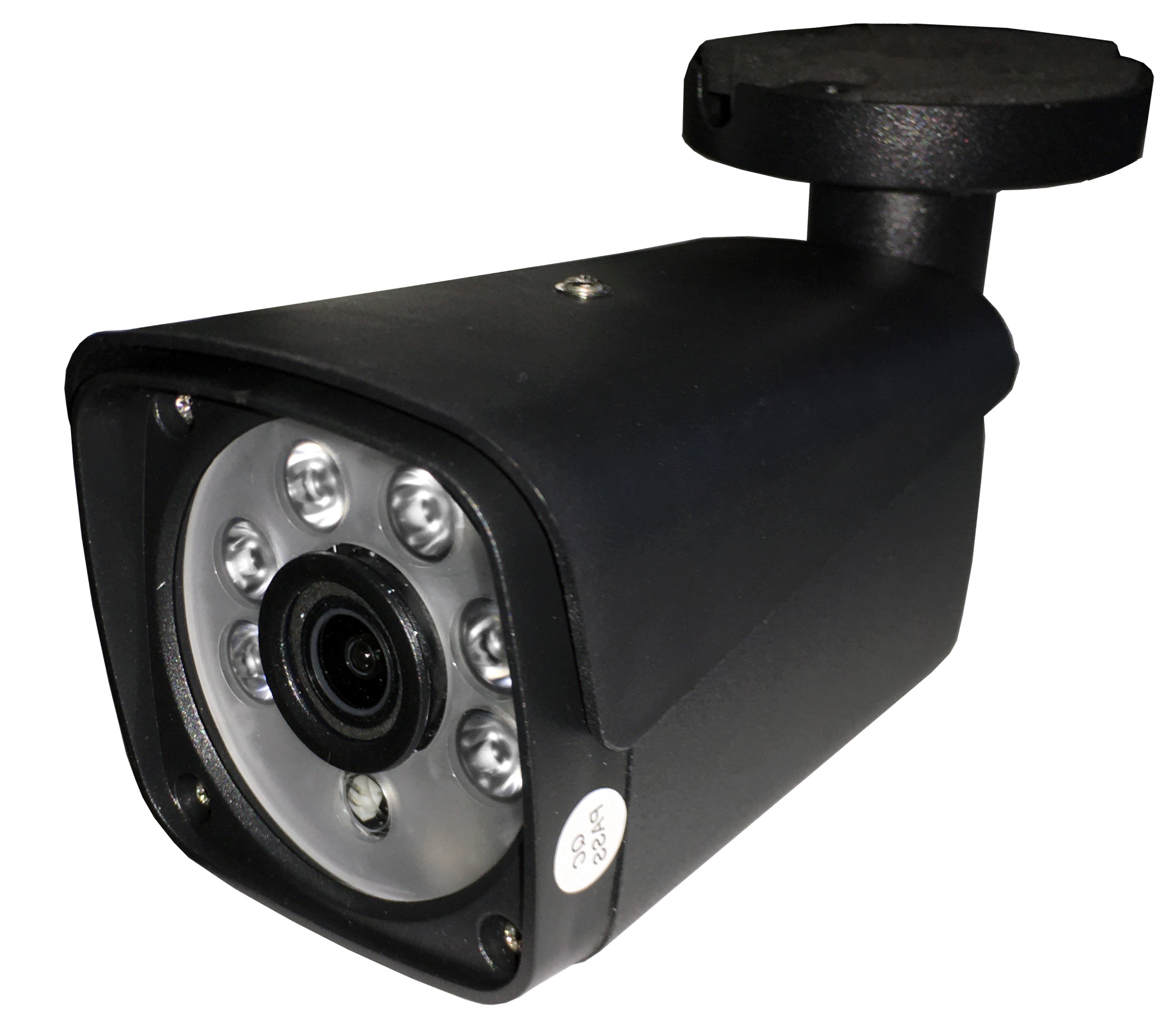

1440P 5 Megapixel IR night-vision Color Outdoor Camera
| Specification |
sensor
|
1/4" Color Cmos |
| Resolution |
1440P 5 megapixel
|
| Pixel |
2560(H) X 1440(V) |
| Min. Illumination |
0.1Lux / F1.2 |
| LED |
6 IR LED |
| IR Range |
up to 60ft |
| Lens |
3.6mm fixed lens (focus 30ft) |
| Angle |
H= 67? 23'; V= 53? 8' |
| S/N Ration |
More than 48dB (AGC off) |
| Electronic Shutter |
1/60(1/50) to 1/100,000 sec. |
| Water Proof |
Yes (IP66)
|
| Gamma Correction |
0.45 |
| White Balance |
ATW |
| AGC |
Auto |
| Video Output |
1.0 VP-p composite 75 Ω BNC |
| Power Source |
DV 12V (+/-10%) 350mA |
