Name:

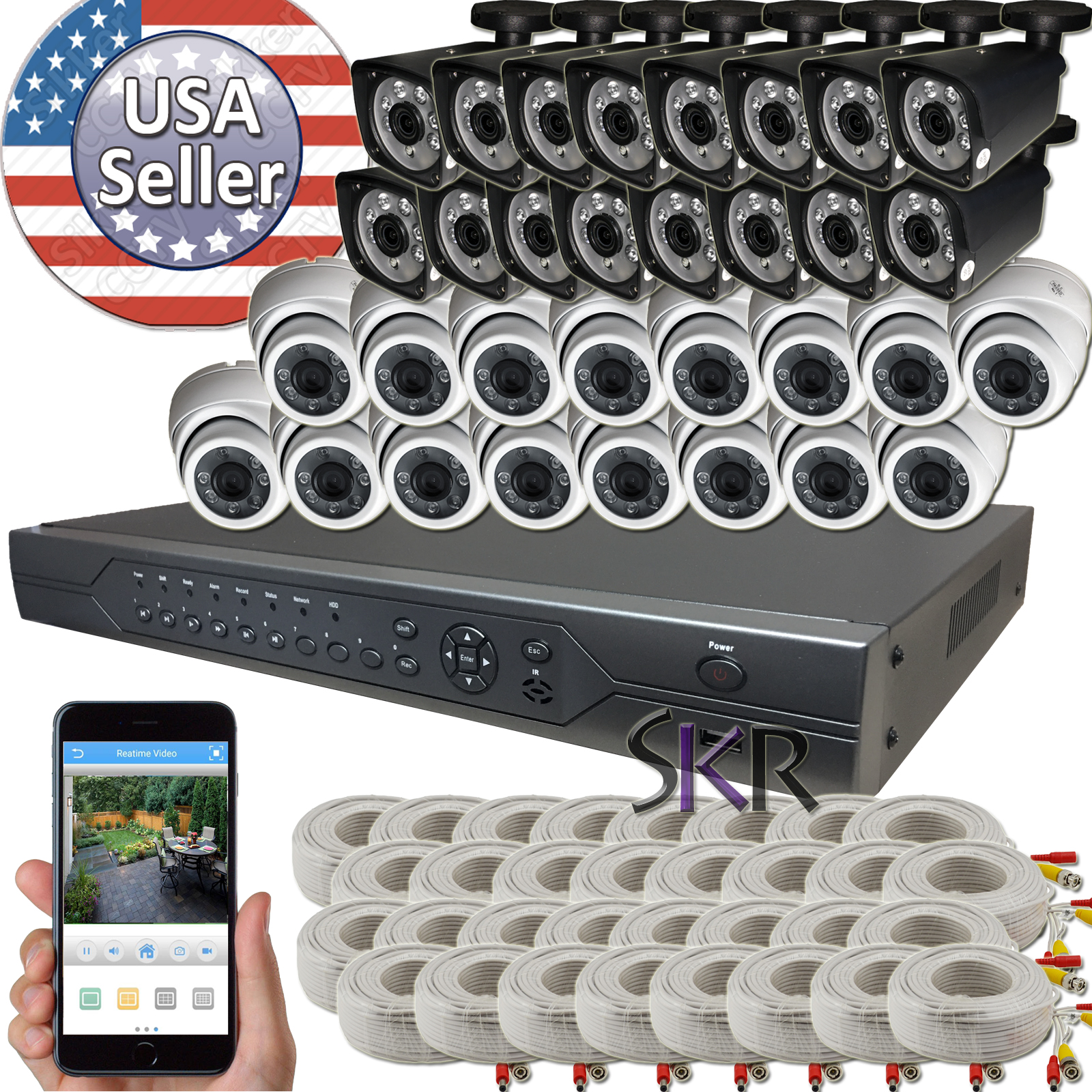

Elite 32 Channel 4MP DVR Recorder with 32 pcs 4 Megapixel 1440P camera package
Manufacturer Number:
SKR-D332C4M16DB
Elite 32 Channels 4 megapixel H.264 Networking Digital Video Recorder DVR
- Record resolution : (4MP-N) 1280 X 1440 pixels 8fps Each Channel
- 8 Channel Playback simultaneously
- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.
- Support 4 channel Audio-Input
- Support Text email alert
- Support Remote View via i-Phone, i-pad, Android phone, computer
- Come with USB mouse, Power supply, User Manual, CD with complete user manual & Software
Specifications |
Video Signal |
NTSC / PAL |
Video Compression format |
H.264 Compression |
GUI OSD |
YES |
Video Input |
32 Channels BNC |
Video Output |
1 X HDMI, 1 X VGA |
Audio Input/Output |
4 Audio RCA Input , 1 Audio RCA Output or HDMI output
|
Display Resolution |
(4MP / 2K) 2560X1440 Pixel
(1080P / 2MP) 1920 X 1080 pixel
(720P / 1MP) 1280 x 720 pixel
|
Maximum Recording Rate |
(4MP-N) 1280 X 1440 Pixels 8FPS per channel <NTSC> |
Image Quality Setting |
Best , Good, General |
Hard Disk Storage |
Support 2 X SATA Drive. Each can support up to 4TB |
Multiplex Operation |
Live : display/record/playback/backup
Network : display/playback/backup |
Record Mode |
Regular: Keep recording
Detect : motion detect
Alarm : alarm input |
Playback Mode |
Multiple slow and rapid play speeds, manual and
single-frame play modes.
support positioning the time by driving the sliding bar |
Backup |
USB 2.0 flash drive 32GB or below
Network download |
Pre-alarm Recording |
Recording 10 seconds before alarming |
Network Protocol |
TCP/IP , PPPoE , DDNS |
Ethernet port |
10/100 Base |
Web Interface |
Internet Explorer 7 or 8 (5 users access simultaneously)
OS: Window 2000/XP/Vista/ 7 / 10
i-phone / i-pad / Android phone
|
Tour |
YES (Sequential Channel Switch) |
Video Adjust |
Hue / Saturation / Contrast / Brightness |
PTZ Control |
RS485
|
Power Source |
DC 12V (+/- 10%) |
Dimensions (inches) |
10(L) X 9(W) X 2(H) inches |

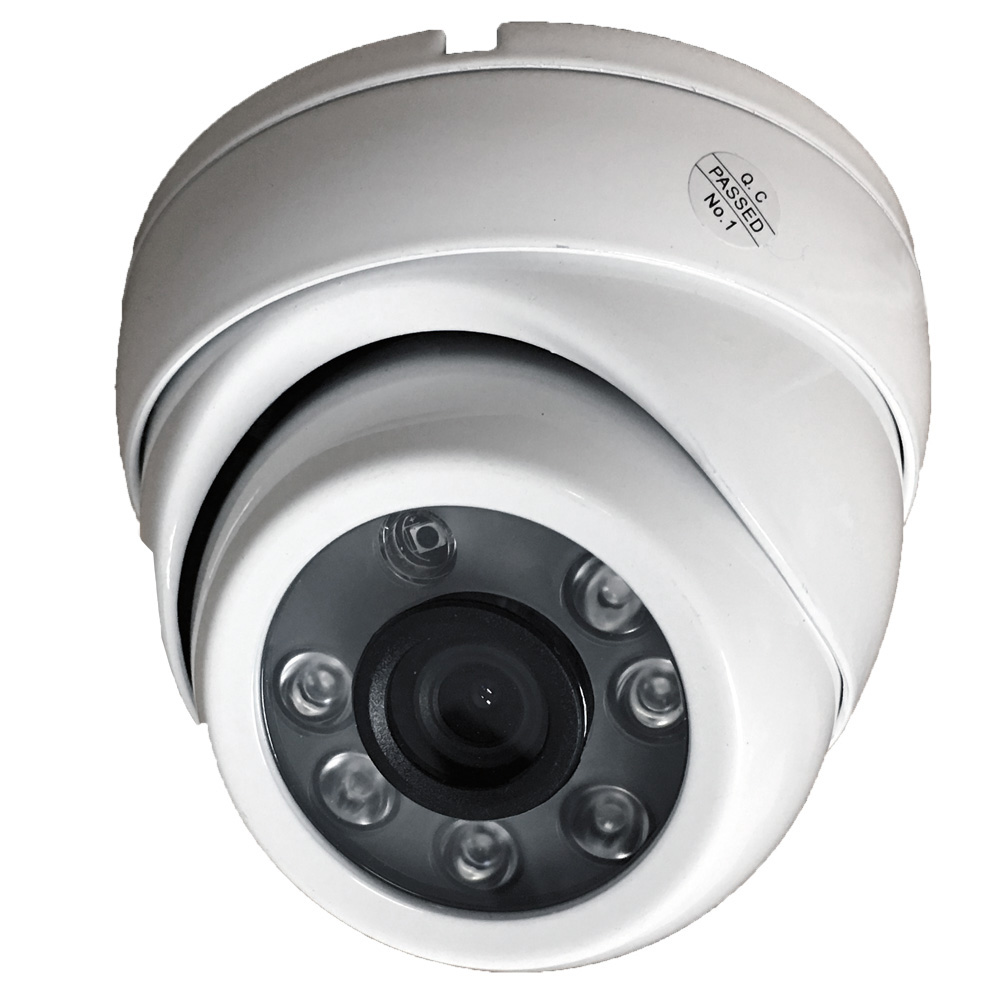

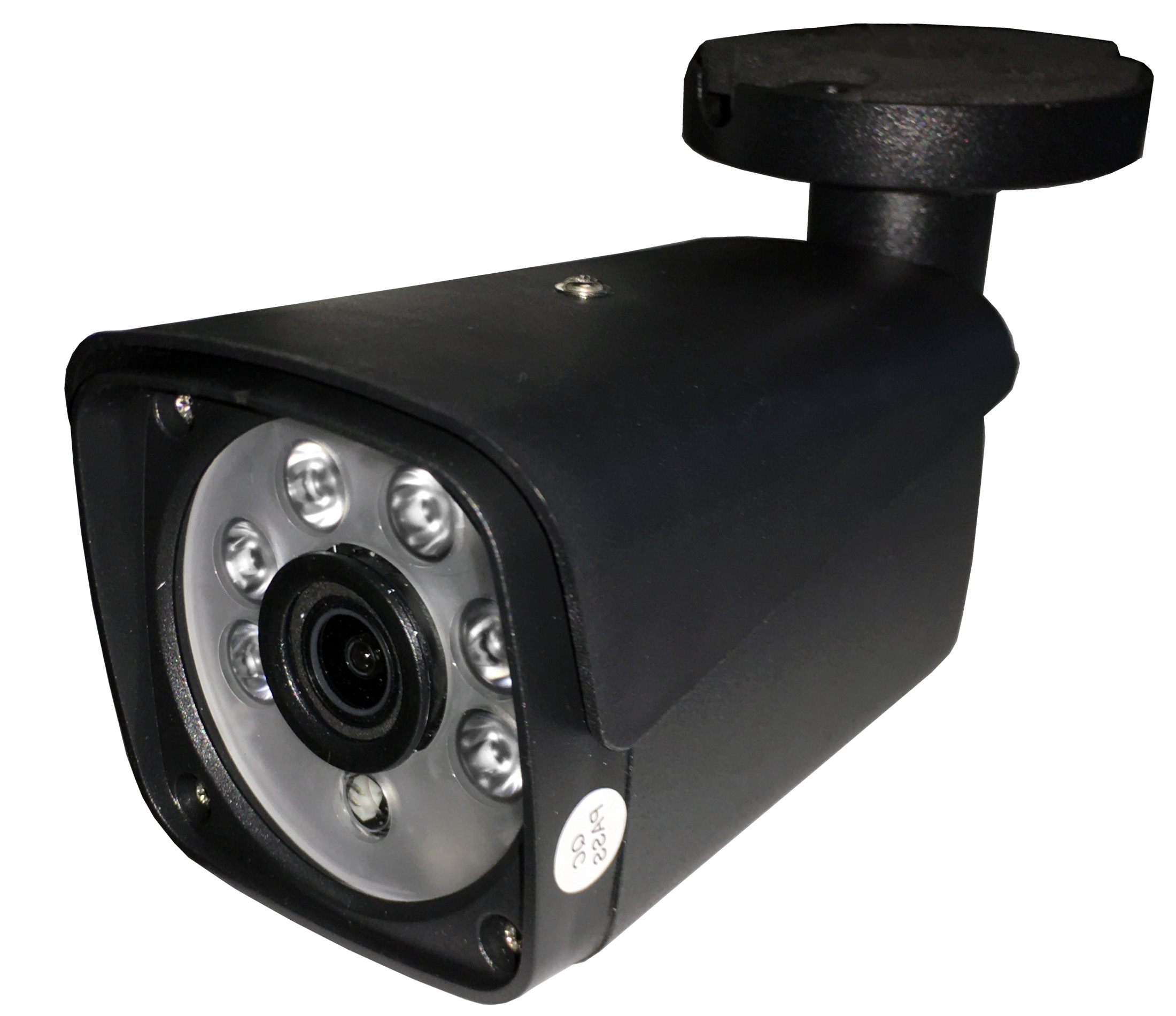

1440P 4 Megapixel IR night-vision Color Indoor/Outdoor Camera
Specification |
sensor
|
1/4" Color Cmos |
Resolution |
1440P 4 megapixel
|
Pixel |
2560(H) X 1440(V) |
Min. Illumination |
0.1Lux / F1.2 |
LED |
6 Array LED |
IR Range |
up to 60ft |
Lens |
3.6mm fixed lens (focus 30ft) |
Angle |
H= 67? 23'; V= 53? 8' |
S/N Ration |
More than 48dB (AGC off) |
Electronic Shutter |
1/60(1/50) to 1/100,000 sec. |
Water Proof |
Yes (IP66)
|
Gamma Correction |
0.45 |
White Balance |
ATW |
AGC |
Auto |
Video Output |
1.0 VP-p composite 75 Ω BNC |
Power Source |
DV 12V (+/-10%) 350mA |
*** Hard Drive is not included. Hard Drive is used for recording and playback. Please select correct one in the option.
|
|
|
