Name:

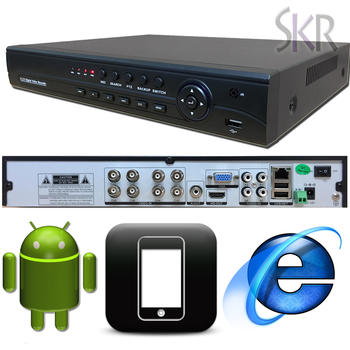

Professional 8 Channels Full 1080P Digital Video Recorder DVR
Manufacturer Number:
SKR-D8208M
Professional 8 Channels AHD-H 1080P H.264 Networking Digital Video Recorder DVR
Connect 1080P cam : 1080P (1920 X 1080 pixel) : 12fps Each Channel
Connect 720P cam : 720P (1280 X 720 pixel) : 12fps Each Channel
Connect old analog cam : 960H (960 X 480 Pixel) : 30fps Each Channel
- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.
- 4 Channel Playback simultaneously
- Support 4 channel Audio-Input
- Support HDMI, VGA Video Output
- Support Text email alert
- Support Remote View via CMS software, Internet Explorer 7 or above, i-Phone, Android
- Come with USB mouse, User Manual, CD with complete user manual& Software
Specifications |
Video Signal |
NTSC / PAL |
Video Compression format |
H.264 Compression |
GUI OSD |
YES |
Video Input |
8 Channels BNC |
Video Output |
1 X VGA, 1 X HDMI
|
Audio Input/Output |
4 Audio RCA Input , 1 Audio RCA Output |
Alarm Input/Output |
No |
Maximum Recording Rate |
(1080P) 1920X1080 Pixels 120FPS <NTSC> |
Image Quality Setting |
Best , Good, General |
Hard Disk Storage |
Support 2 X SATA Drive. Each can support up to 4TB |
Multiplex Operation |
Live : display/record/playback/backup
Network : display/playback/backup |
Record Mode |
Regular: Keep recording
Detect : motion detect
Alarm : alarm input |
Playback Mode |
Multiple slow and rapid play speeds, manual and single-frame play modes.
support positioning the time by driving the sliding bar |
Backup |
USB 2.0 flash drive 32GB or below
Network download |
Pre-alarm Recording |
Recording 30 seconds before alarming |
Network Protocol |
TCP/IP , PPPoE , DDNS, ARSP |
Ethernet port |
10/100 Base |
Web Interface |
Internet Explorer 7 or 8 (5 users access simultaneously) OS: Window 2000/XP/Vista/ 7
Iphone / Android / Windows Mobile OS 5 or 6 / Symbian S60 3rd & 5th Edition |
Tour |
YES (Sequential Channel Switch) |
Video Adjust |
Hue / Saturation / Contrast / Brightness |
PTZ Control |
RS485 |
Power Source |
DC 12V (+/- 10%) |
Dimensions (inches) |
13(L) X 10(W) X 2(H) inches |
