Name:

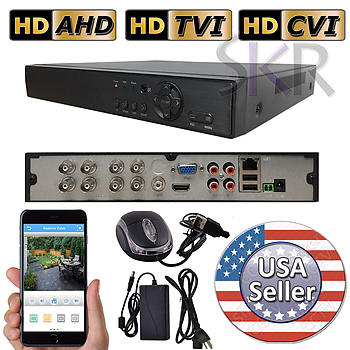

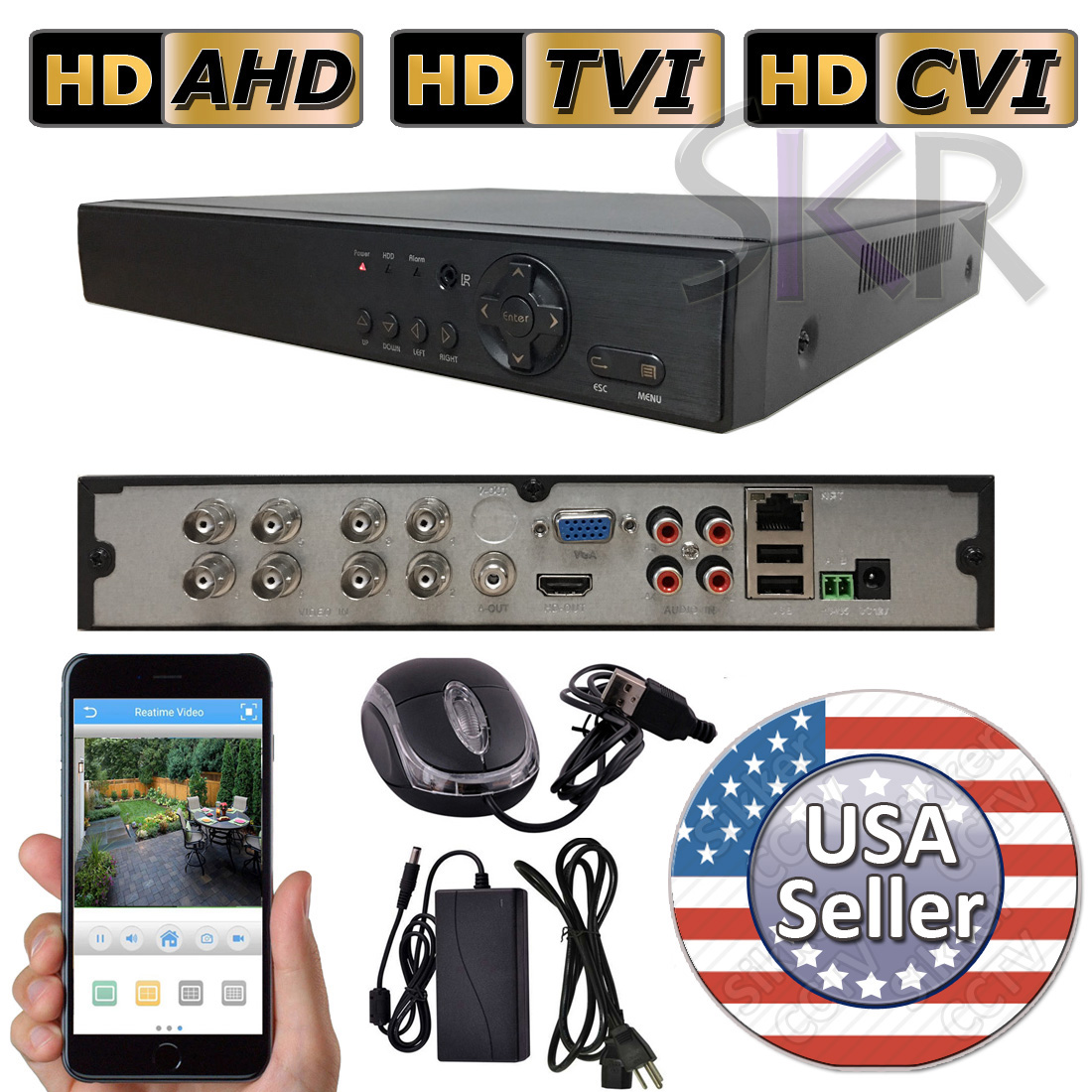

Elite 8 Channels Full 4MP Digital Video Recorder DVR
Manufacturer Number:
SKR-D8308N
Professional 8 Channels AHD/TVI 4MP 4 Megapixel H.265 Networking Digital Video Recorder DVR
Connect 4MP cam : 4MP (2560 X 1440 pixel) : 8fps Each Channel
Connect 1080P cam : 1080P (1920 X 1080 pixel) : 15fps Each Channel
Connect 720P cam : 720P (1280 X 720 pixel) : 30fps Each Channel
Connect old analog cam : 960H (960 X 480 Pixel) : 30fps Each Channel
- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.
- 4 Channel Playback simultaneously
- Support 4 channel Audio-Input
- Support HDMI, VGA Video Output
- Support Text email alert
- Support Remote View via i-Phone, Android phone, i-pad, computer
- Come with USB mouse, User Manual, CD with complete user manual& Software
Specifications |
Video Signal |
NTSC / PAL |
Video Compression format |
H.265 Compression |
GUI OSD |
YES |
Video Input |
8 Channels BNC |
Video Output |
1 X VGA, 1 X HDMI
|
Audio Input/Output |
4 Audio RCA Input , 1 Audio RCA Output |
Alarm Input/Output |
No |
Maximum Recording Rate |
(4MP) 2560X1440 Pixels 64FPS <NTSC> |
Image Quality Setting |
Best , Good, General |
Hard Disk Storage |
Support 2 X SATA Drive. Each can support up to 6TB |
Multiplex Operation |
Live : display/record/playback/backup
Network : display/playback/backup |
Record Mode |
Regular: Keep recording
Detect : motion detect
Alarm : alarm input |
Playback Mode |
Multiple slow and rapid play speeds, manual and single-frame play modes.
support positioning the time by driving the sliding bar |
Backup |
USB 2.0 flash drive 128GB or below
Network download |
Pre-alarm Recording |
No |
Network Protocol |
TCP/IP , PPPoE , DDNS, ARSP |
Ethernet port |
10/100 Base |
Web Interface |
CMS software OS: Window 7 / 8 / 10 / 11
Iphone / Android phone, / i-pad |
Tour |
YES (Sequential Channel Switch) |
Video Adjust |
Hue / Saturation / Contrast / Brightness |
PTZ Control |
RS485 |
Power Source |
DC 12V (+/- 10%) |
Dimensions (inches) |
13(L) X 10(W) X 2(H) inches |
