Name:

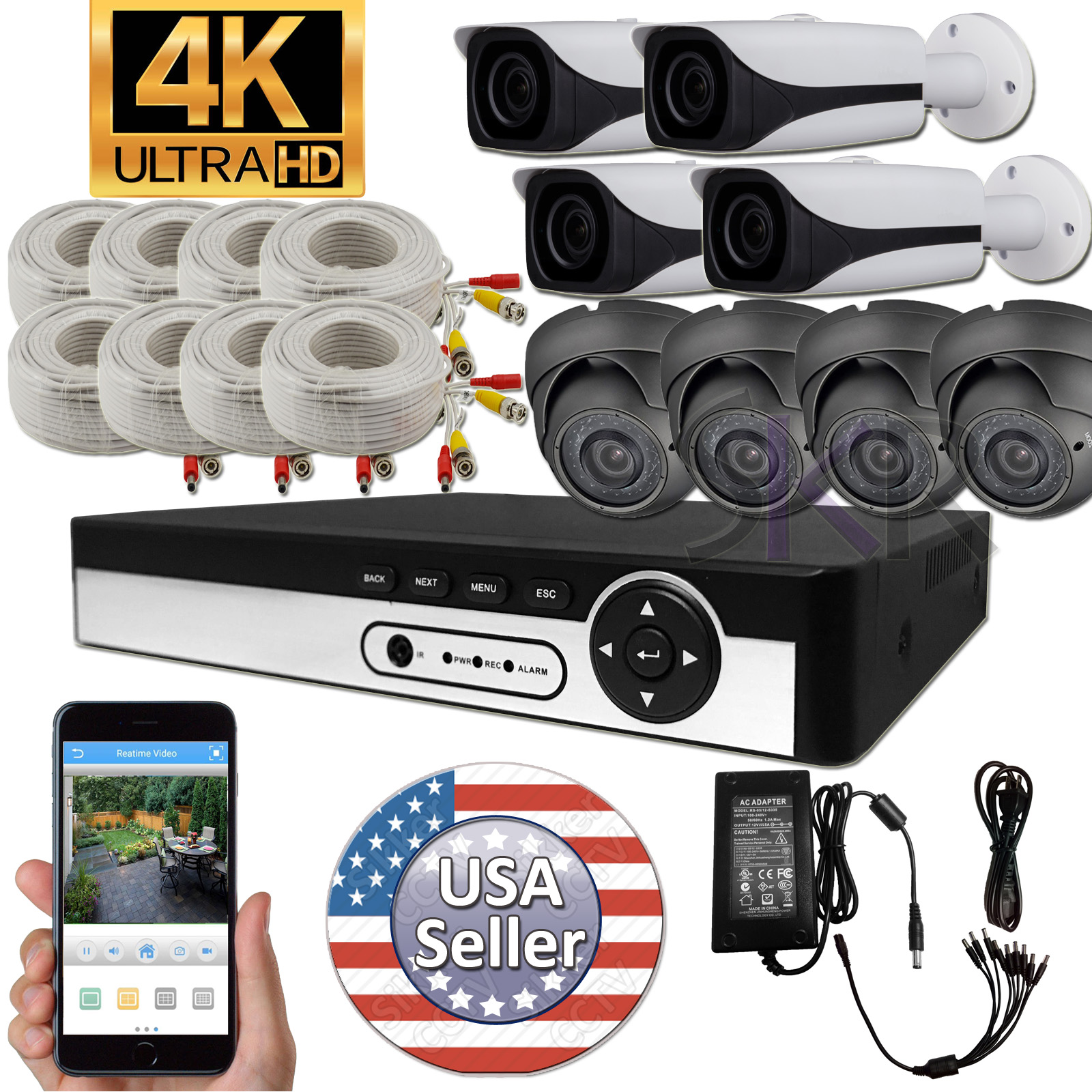

Ultra 8 Channel DVR Recorder with 4K 8 Megapixel 2160P Vari-focal lens camera package
Manufacturer Number:
SKR-D508S8VFDB
Ultra 8 Channels H.265 Digital Video Recorder DVR
- Record resolution : (4K-N) 1920 X 2160 Pixels Resolution : 8fps per channel
- 8 Channel Playback simultaneously
- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.
- Support 1 channel Audio-Input
- Support Text email alert and push notification
- Support Remote View via i-Phone, i-pad, Android phone, computer
- Come with USB mouse, Power supply
| Specifications |
| Video Signal |
NTSC / PAL |
| Video Compression format |
H.265 Compression |
| GUI OSD |
YES |
| Video Input |
8 Channels BNC |
| Video Output |
1 X HDMI, 1 X VGA |
| Audio Input/Output |
1 Audio RCA Input , 1 Audio RCA Output |
| Display Resolution |
(4K) 3840 X 2160 Pixel
(5MP) 2160X1440 Pixel
(1080P / 2MP) 1920 X 1080 pixel
(720P / 1MP) 1280 x 720 pixel
|
| Maximum Recording Rate |
(8MP-N) 1920 X 2160 Pixels 8fps per channel <NTSC> |
| Image Quality Setting |
Best , Good, General |
| Hard Disk Storage |
Support 1 X SATA Drive. Each can support up to 6TB |
| Multiplex Operation |
Live : display/record/playback/backup
Network : display/playback/backup |
| Record Mode |
Regular: Keep recording
Detect : motion detect
Alarm : alarm input |
| Playback Mode |
Multiple slow and rapid play speeds, manual and
single-frame play modes.
support positioning the time by driving the sliding bar |
| Backup |
USB 2.0 flash drive 128GB or below
Network download |
| Pre-alarm Recording |
No |
| Network Protocol |
TCP/IP , PPPoE , DDNS |
| Ethernet port |
10/100 Base |
| Web Interface |
CMS software OS: Window 10 / 11
i-phone / i-pad / Android phone
|
| Tour |
YES (Sequential Channel Switch) |
| Video Adjust |
Hue / Saturation / Contrast / Brightness |
| PTZ Control |
No , control over coax |
| Power Source |
DC 12V (+/- 10%) |
| Dimensions (inches) |
10(L) X 9(W) X 2(H) inches |

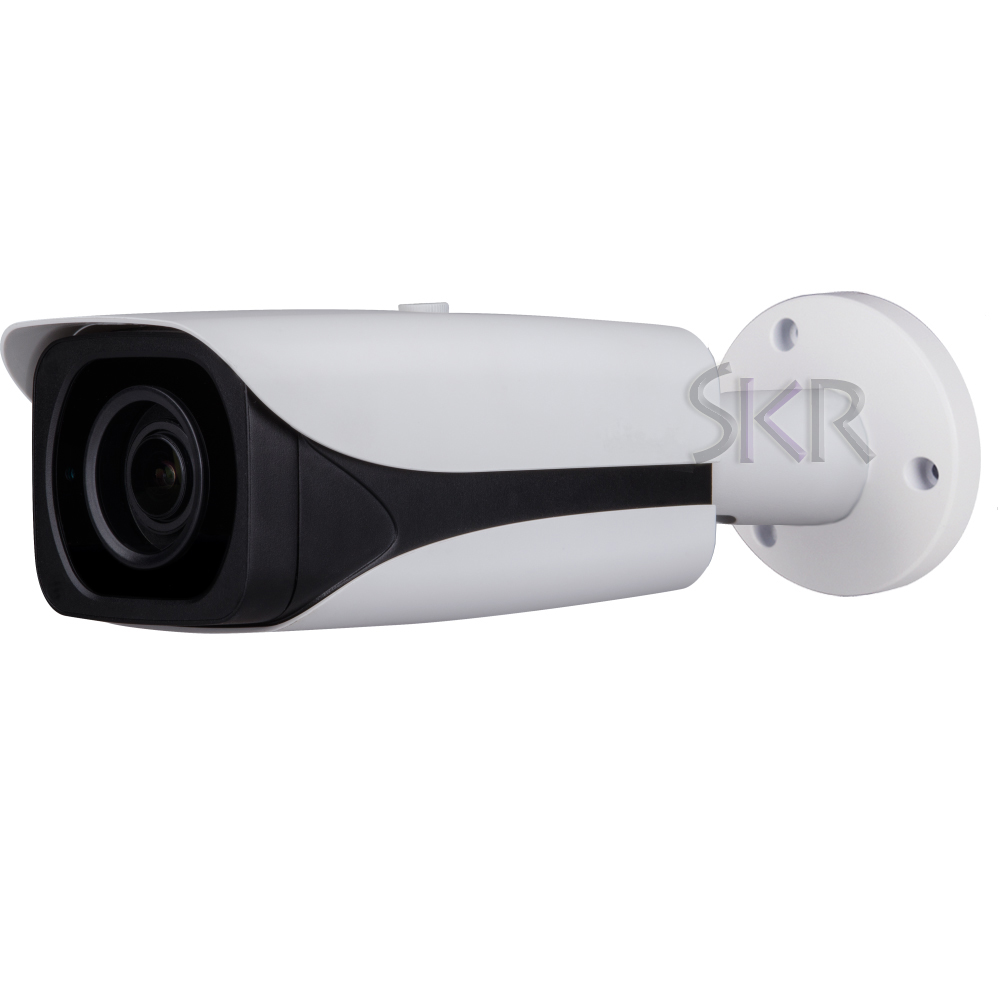

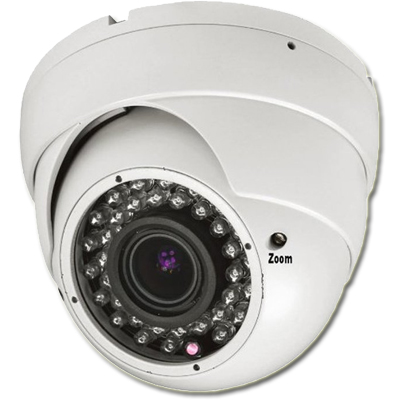

2160P 8 Megapixel IR night-vision Indoor/Outdoor Vari-focal Camera
Dome type : 2.8 - 12mm vari-focal lens
Bullet type : 6 - 22mm vari-focal lens
| Specification |
sensor
|
1/4" Color Cmos |
| Resolution |
2160P 4K 8 megapixel
|
| Pixel |
3840(H) X 2160(V) |
| Min. Illumination |
0.1Lux / F1.2 |
| LED |
Dome : 36 IR LED
Bullet : 4 array LED |
| IR Range |
up to 100ft |
| Lens |
Dome : 2.8 - 12mm adjustable lens
Bullet : 6 - 22mm adjustable lens |
| Angle |
H= 67' - 13' ; V= 53' - 11'
|
| S/N Ration |
More than 48dB (AGC off) |
| Electronic Shutter |
1/60(1/50) to 1/100,000 sec. |
| Water Proof |
Yes (IP66)
|
| Gamma Correction |
0.45 |
| White Balance |
ATW |
| AGC |
Auto |
| Video Output |
1.0 VP-p composite 75 Ω BNC |
| Power Source |
DV 12V (+/-10%) 1A |
