Name:

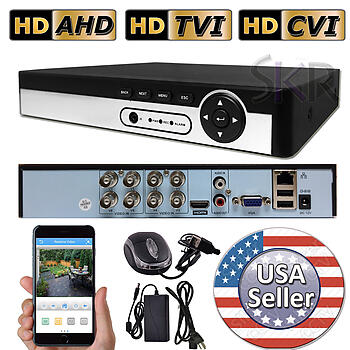

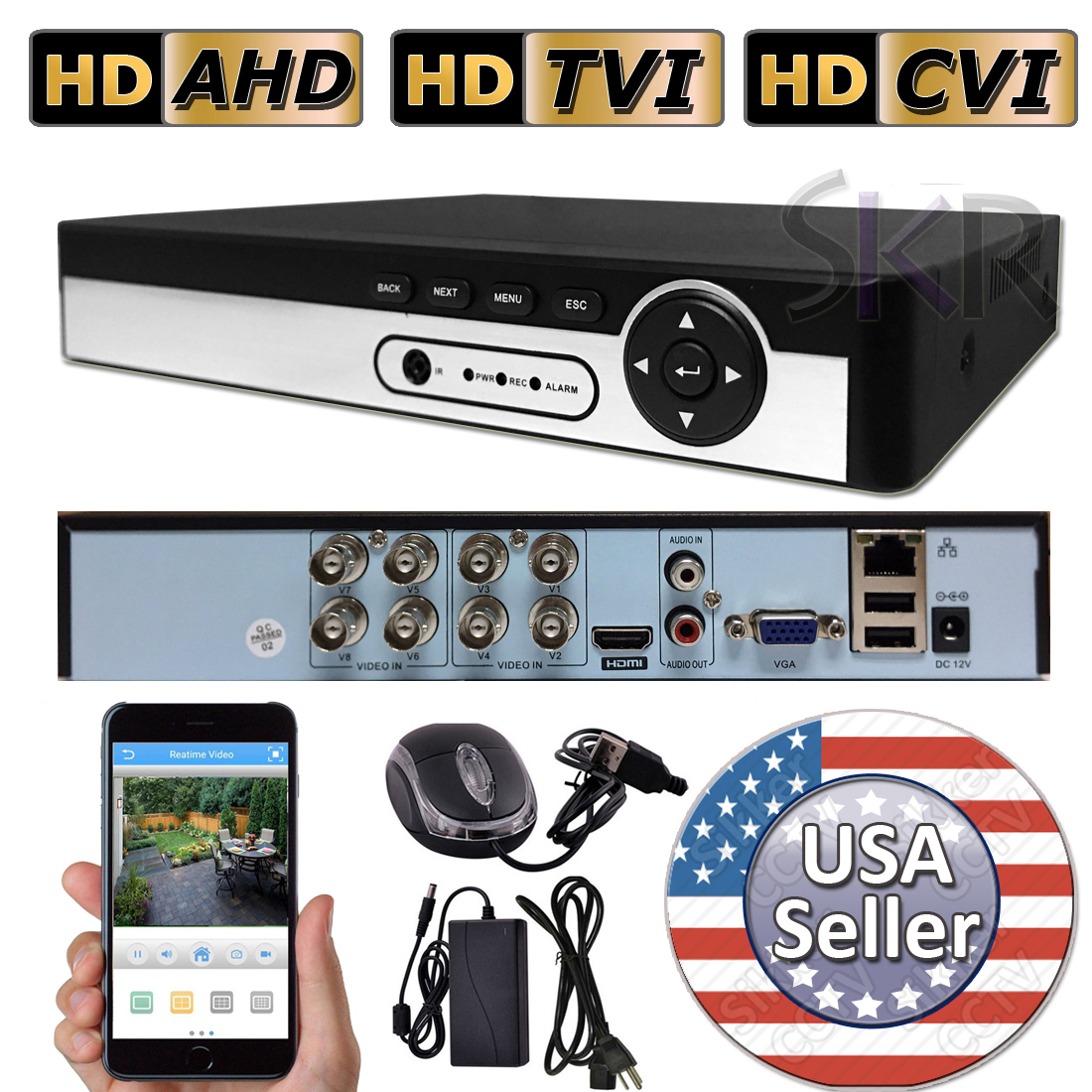

Economical 8 Channels Full 960H / 720p / 1080N Digital Video Recorder DVR
Manufacturer Number:
SKR-D8308S
Economical 8 Channels Full 960H / 720P / 1080P H.265 Digital Video Recorder DVR
Connect 1080P cam : 1080N (960 X 1080 pixel) : 12fps Each Channel
Connect 720P cam : 720P (1280 X 720 pixel) : 12fps Each Channel
Connect old analog cam : 960H (960 X 480 Pixel) : 30fps Each Channel
- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.
- Support Remote View via i-Phone, i-pad, Android phone, computer
- Come with USB mouse, power supply, CD with complete user manual & Software
Specifications |
Video Signal |
NTSC / PAL |
Video Compression format |
H.265 Compression |
GUI OSD |
YES |
Video Input |
8 Channels BNC |
Video Output |
1 X HDMI, 1 X VGA |
Audio Input/Output |
1 Audio RCA Input , 1 Audio RCA Output |
Display resolution
|
1080P / 720P / 960H
|
Maximum Recording Rate |
(1080N) 960 X 1080Pixels 12FPS each channel<NTSC>
(720P) 1280 X 720Pixels 12FPS each channel<NTSC>
(960H) 960 X 480Pixels 30FPS each channel<NTSC> |
Image Quality Setting |
Best , Good, General |
Hard Disk Storage |
Support 1 X SATA Drive. Each can support up to 6TB |
Multiplex Operation |
Live : display/record/playback/backup
Network : display/playback/backup |
Record Mode |
Regular: Keep recording
Detect : motion detect
Alarm : alarm input |
Playback Mode |
Multiple slow and rapid play speeds, manual and
single-frame play modes.
support positioning the time by driving the sliding bar |
Backup |
USB 2.0 flash drive 128GB or below
Network download |
Pre-alarm Recording |
No |
Network Protocol |
TCP/IP , PPPoE , DDNS |
Ethernet port |
10/100 Base |
Web Interface |
CMS software OS: Window 8 / 10 / 11
i-phone / i-pad / Android phone
|
Tour |
YES (Sequential Channel Switch) |
Video Adjust |
Hue / Saturation / Contrast / Brightness |
PTZ Control |
No , Control over coax |
Power Source |
DC 12V (+/- 10%) |
Dimensions (inches) |
13(L) X 10(W) X 2(H) inches |
