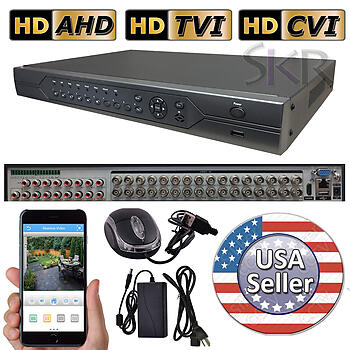

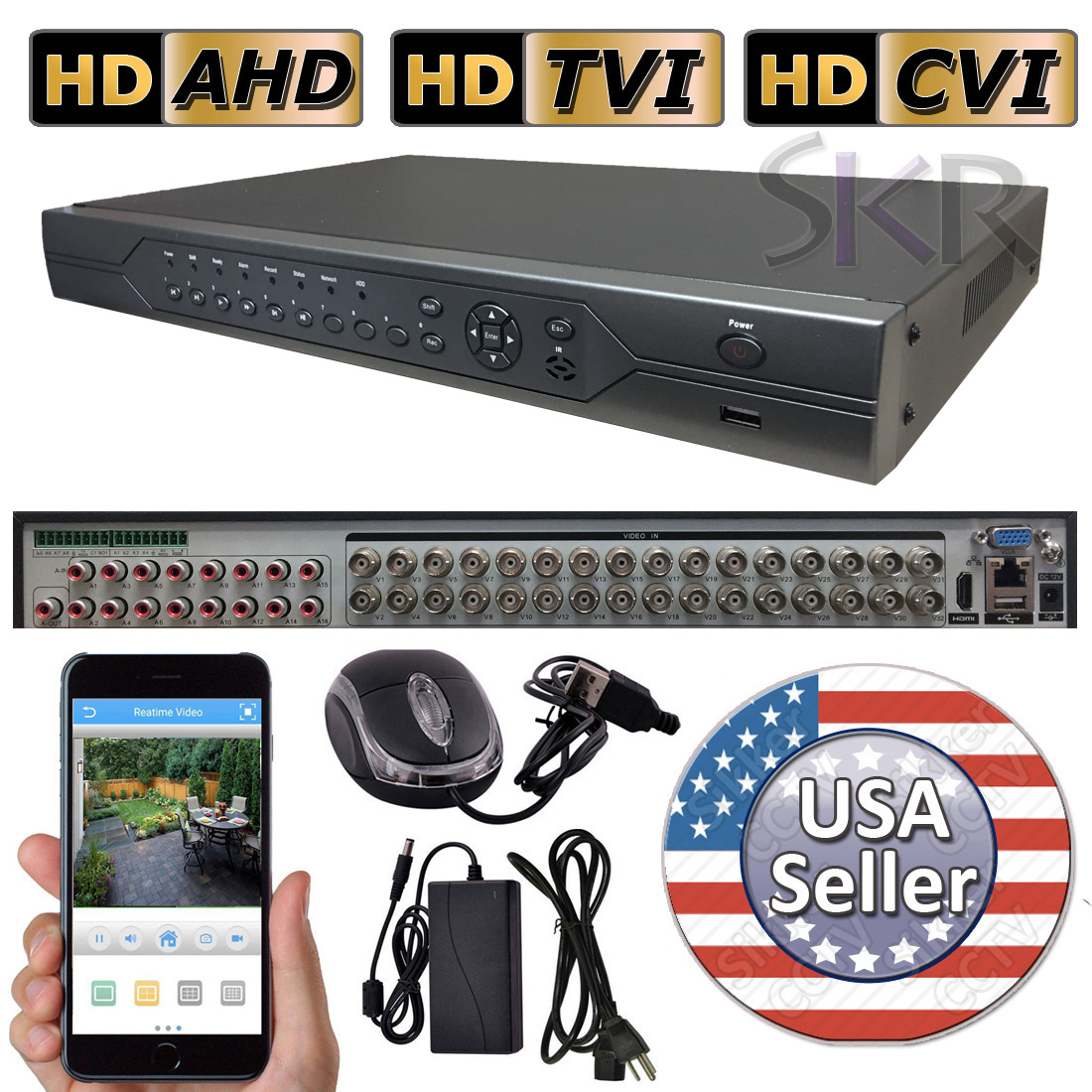

Professional 32 Channels 4MP-N 1080P H.264 IP Networking Digital Video Recorder DVR

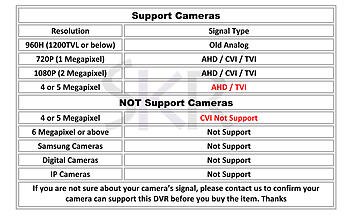

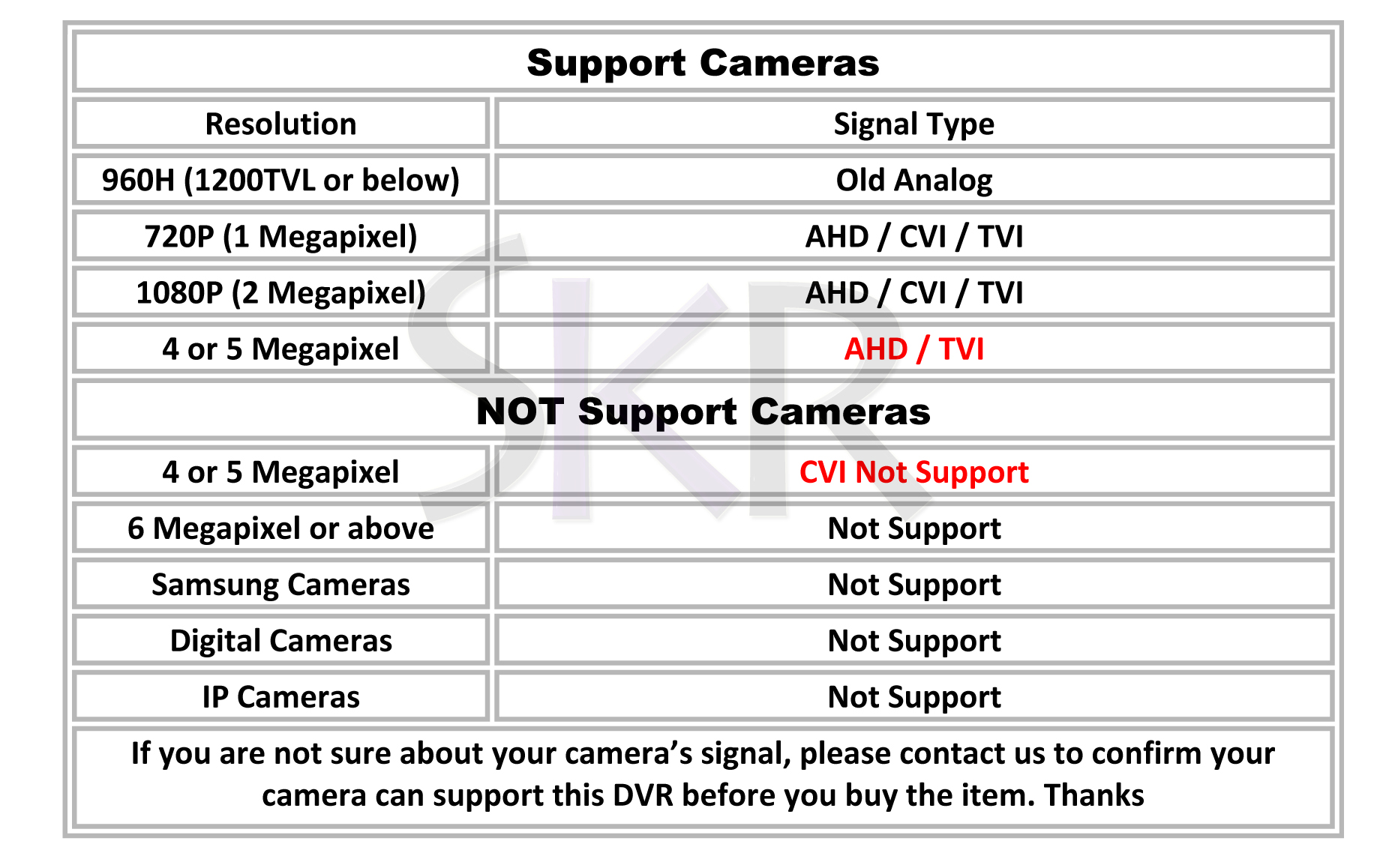

- Record Resolution

Connect 4 Megapixel camera : (4MP-N) 1280 X 1440 pixels 8fps Each Channel

Connect 1080P 2 megapixel camera : (1080P) 1920 X 1080 pixels 8fps Each Channel

Connect 720P 1 Megapixel camera : (720P) 1280 X 720 pixels 15fps Each Channel

Connect old Analog camera : (960H) 960 X 480 pixels 30fps Each Channel

- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.

- 8 Channel Playback simultaneously

- Support 6 channel Audio-Input

- Support HDMI, VGA Video Output

- Support Text email alert

- Support Remote View via i-Phone, i-pad, Android phone, computer

- Come with USB mouse, Power supply, CD with complete user manual & computer Software

Specifications
Video Signal	NTSC / PAL
Video Compression format	H.264 Compression
GUI OSD	YES
Video Input	32 Channels BNC
Video Output	1 X VGA, 1 X HDMI
Audio Input/Output	6 Audio RCA Input , 1 Audio RCA Output
Alarm Input/Output	No
Display Resolution	4MP (2K) / 1080P / 720P
Maximum Recording Rate	(960H)960 X 480 Pixels 30FPS per channel <NTSC> (720P)1280 X 720 Pixels 15FPS per channel<NTSC> (1080P) 1920 X 1080 Pixels 8FPS per channel <NTSC> (4MP-N) 1280 X 1440 Pixels 8FPS per channel <NTSC>
Image Quality Setting	Best , Good, General
Hard Disk Storage	Support 2 X SATA Drive. Each can support up to 4TB
Multiplex Operation	Live : display/record/playback/backup Network : display/playback/backup
Record Mode	Regular: Keep recording Detect : motion detect Alarm : alarm input
Playback Mode	Multiple slow and rapid play speeds, manual and single-frame play modes. support positioning the time by driving the sliding bar
Backup	USB 2.0 flash drive 32GB or below Network download
Pre-alarm Recording	Recording 10 seconds before alarming
Network Protocol	TCP/IP , PPPoE , DDNS
Ethernet port	10/100 Base
Web Interface	Internet Explorer 7 or 8 or 10 (5 users access simultaneously) OS: Window 2000/XP/Vista/ 7 / 10 i-phone / i-pad /Android
Tour	YES (Sequential Channel Switch)
Video Adjust	Hue / Saturation / Contrast / Brightness
PTZ Control	Control over Coax
Power Source	DC 12V (+/- 10%)
Dimensions (inches)	18(L) X 15(W) X 4(H) inches
