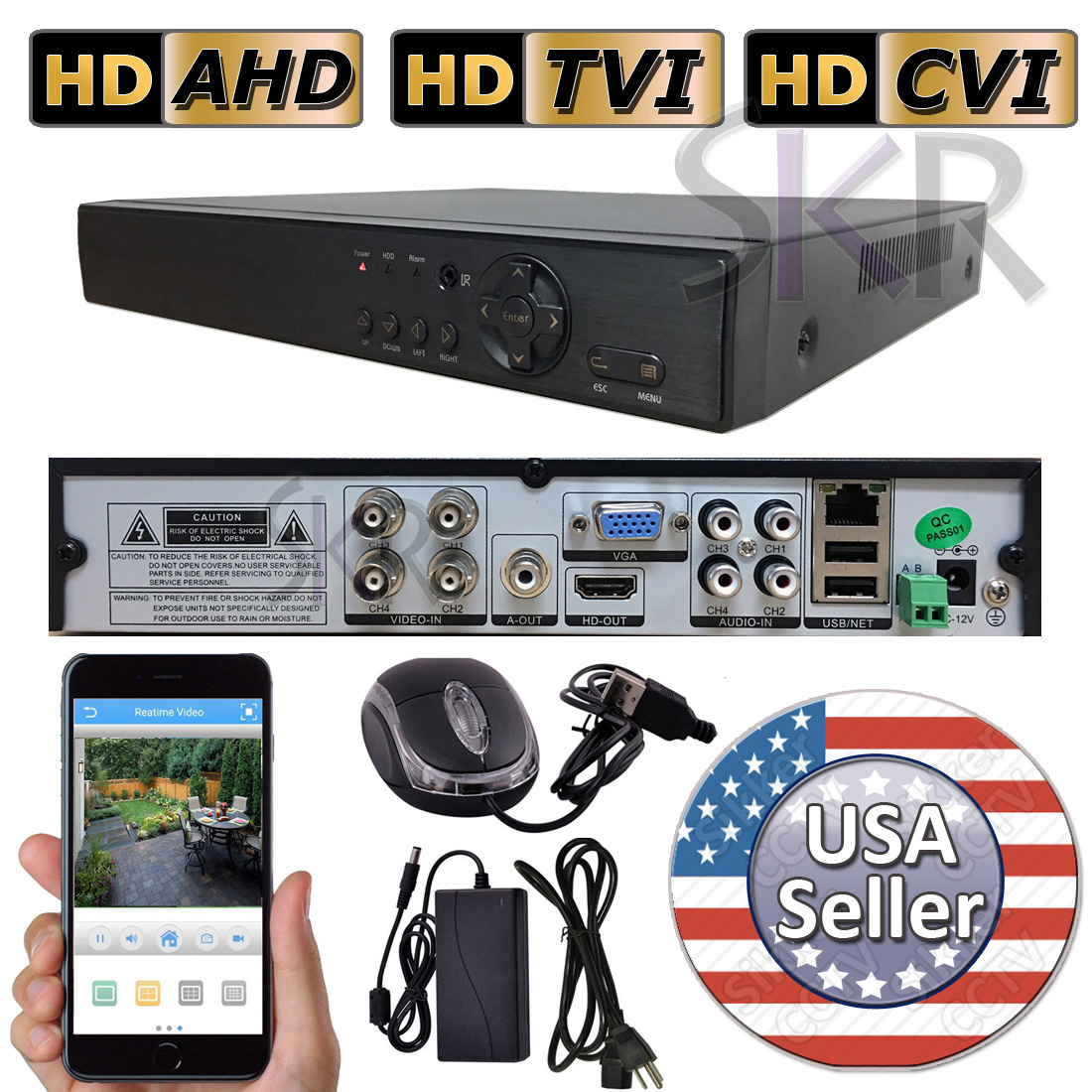

Professional 4 Channels H.264 IP Networking Digital Video Recorder DVR

- Record and playback resolution :

Connect 1080P camera : 1080N (960 x 1080 pixels) 12fps per channel

Connect 720P camera : 720P (1280 x 720 pixels) 12fps per channel

Connect old analog camera : 960H (960 x 480 pixels) 30fps per channel

- 4 Channel Playback simultaneously

- Support E-Cloud function. Plug & Play remote viewing. No Port forwarding needed. Free DDNS.

- Support 4 channel Audio-Input

- Support Text email alert

- Support Remote View i-Phone, i-pad, Android phone , computer

- Come with Power supply , USB mouse, CD with complete user manual & computer Software

Specifications
Video Signal	NTSC / PAL
Video Compression format	H.264 Compression
GUI OSD	YES
Video Input	4 Channels BNC
Video Output	1 X HDMI, 1 X VGA
Audio Input/Output	4 Audio RCA Input , 1 Audio RCA Output
Alarm Input/Output	NO
Display resolution	(1080P)1920X1080 Pixels (720P)1280X720 Pixels
Maximum Recording Rate	(1080N) 960 X 1080Pixels 12FPS each channel<NTSC> (720P) 1280 X 720Pixels 12FPS each channel<NTSC> (960H) 960 X 480Pixels 30FPS each channel<NTSC>
Image Quality Setting	Best , Good, General
Hard Disk Storage	Support 1 X SATA Drive. Each can support up to 4TB
Multiplex Operation	Live : display/record/playback/backup Network : display/playback/backup
Record Mode	Regular: Keep recording Detect : motion detect Alarm : alarm input
Playback Mode	Multiple slow and rapid play speeds, manual and single-frame play modes. support positioning the time by driving the sliding bar
Backup	USB 2.0 flash drive 32GB or below Network download
Pre-alarm Recording	Recording 10 seconds before alarming
Network Protocol	TCP/IP , PPPoE , DDNS
Ethernet port	10/100 Base
Web Interface	Internet Explorer 7 or 8 (5 users access simultaneously) OS: Window 2000/XP/Vista/ 7 / 10 i-phone / i-pad / Android phone
Tour	YES (Sequential Channel Switch)
Video Adjust	Hue / Saturation / Contrast / Brightness
PTZ Control	Yes : RS485
Power Source	DC 12V (+/- 10%)
Dimensions (inches)	10(L) X 9(W) X 2(H) inches
